- About this Item

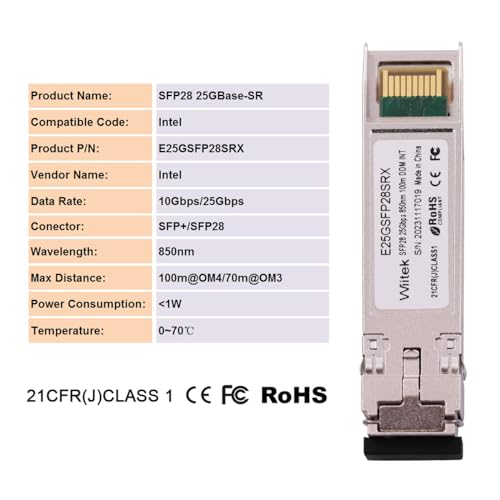

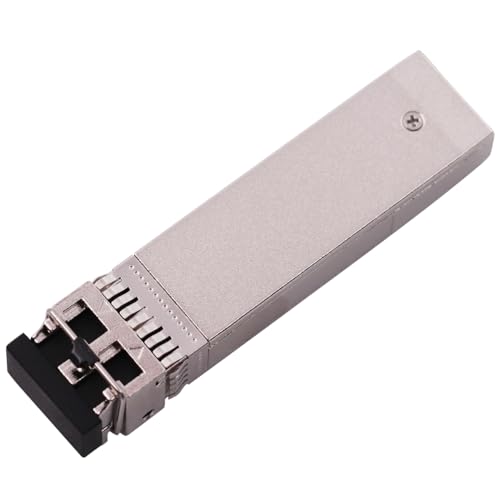

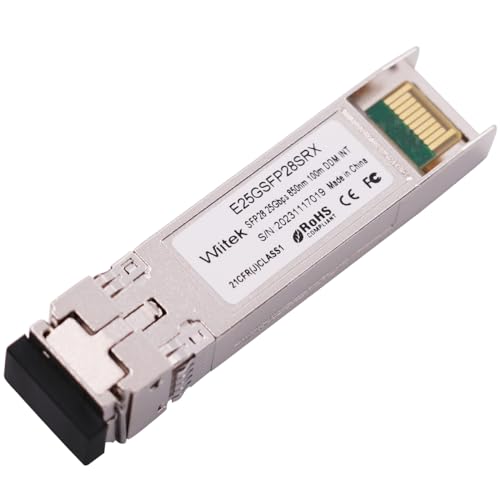

- • 25GBase-SR SFP28 to duplex LC multimode fiber transceiver, Data Rate25Gbps, Wavelength 850nm, Connector Type Dual LC, Reach up to 100m over OM4 MMF (70m over OM3)
- • 100 Compatible with Intel E25GSFP28SRX, Each SFP28 module is individually tested on a series of Intel switches, this 25G transceiver is ideal for 25G Switch, 25G NIC network card, 25G SFP28 PCIE Card
- • Hot Pluggable, compliant to SFP28 MSA, IEEE 802.3by and IEEE 802.3cc
- • Low Power Consumption below 1W, Easy installation
Specifications & Details
| SKU | PIB0CPJDFTY5 |
|---|---|
| Package Dimensions | 4.6 x 2.5 x 0.9 inches ; 0.038 kgs |
| Item model number | E25GSFP28SRX |
| Manufacturer | Wiitek Technology |
Product description
bWiitek 25G SFP28 SFP Optical Transceiver, 25GBase-SR Module, 850nm MMF, up to 100meters, Compatible for Intel E25GSFP28SRXbbr br bFeaturesbbr br Compatible with CPRI option10 24.33Gbps and 25GBASE 25.78Gbpsbr 100m transmission over OM4 MMFbr 70m transmission over OM3 MMFbr 850nm VCSEL laser transmitterbr 80nm high sensitivity PIN-TIA receiverbr SFP28 MSA compliantbr Built-in digital diagnostic functionsbr Single 3.3V power supply br Operating case temperature 0 to 70 Cbr RoHS 6 Compliantbr br bApplicationbbr br 25GBASE-SRbr 24.33Gbps CPRIbr InfiniBand QDR, SDR, DDRbr Servers, switches, storage and host card adaptersbr br
