- About this Item
- • Wide range capacitor tester: Multimeter with capacitor tester can read capacitor's capacitance from
- • ESR capacitor tester: Estimated esr internal resistance displaying at 47uF to 47mF and 47mF to 470F
- • High accuracy: CE certified professional capacitance meters. MF470 has the characteristics of fast r
- • PC software: Capacitor meter can be used for digital analysis. Connect with USB can provide capacita
Specifications & Details
| SKU | PIB0CGCXF334 |
|---|---|
| Product Dimensions | 5.7 x 3.2 x 1.1 inches ; 0.140 kgs |
| Item model number | MF470 |
| Manufacturer | Alignimals |
Product description
Alignimals MF470 has ultra wide measurement range up to 470F. MF470 can measure ESR internal resistance value, which is suitable for audio's capacitor measurment. Extra fast measurement speed, making it convenient for customers to judge the performance of capacitors. Multiple testing indicators are displayed simultaneously in dot matrix LCD, making it clear at a glance.
Note: Use the type-c interface for power supply or while measuring small pF capacitance, the reading maybe interfered by environmental noise. Then you can try to connect a grounding cable to ground, like metal water pipe. Caution! Please discharge the capacitor before measuring.
Alignimals MF470 automatic ranging capacitance meter.
Using a 128X64 dot matrix LCD display, it can display 5 digits readings. The measurement range is large, with a capacitance of 0.01pF to 470F (470,000,000uF).
New Farad (supercapacitor) measurement range of 47mF to 470F. Provide a wide range of applications from DIY enthusiasts to professional engineers.
MF470 has the characteristics of fast reading speed and accuracy of up to 1%. Reading 2200uF only takes about 0.2s.
Capacitance tolerance estimation, showing the percentage deviation between the nominal value and the actual value. The internal resistance ESR value of a capacitor can be estimated to determine its performance.
It has PC software to support users for real-time data analysis and storage. Widely used in audio DIY testing, home appliance maintenance, engineer development and design, batch quality inspection of capacitors, analysis of capacitor characteristics, etc.
PC connection
It has PC software support for real time analysis and storing data
Type-C power supply
External type-c power supply and PC connection
Auto and Manual range
Support AUTO range and manual range selection
1 key zero
pF level capacitance testing, one key zero operation, eliminating small parasitic capacitance

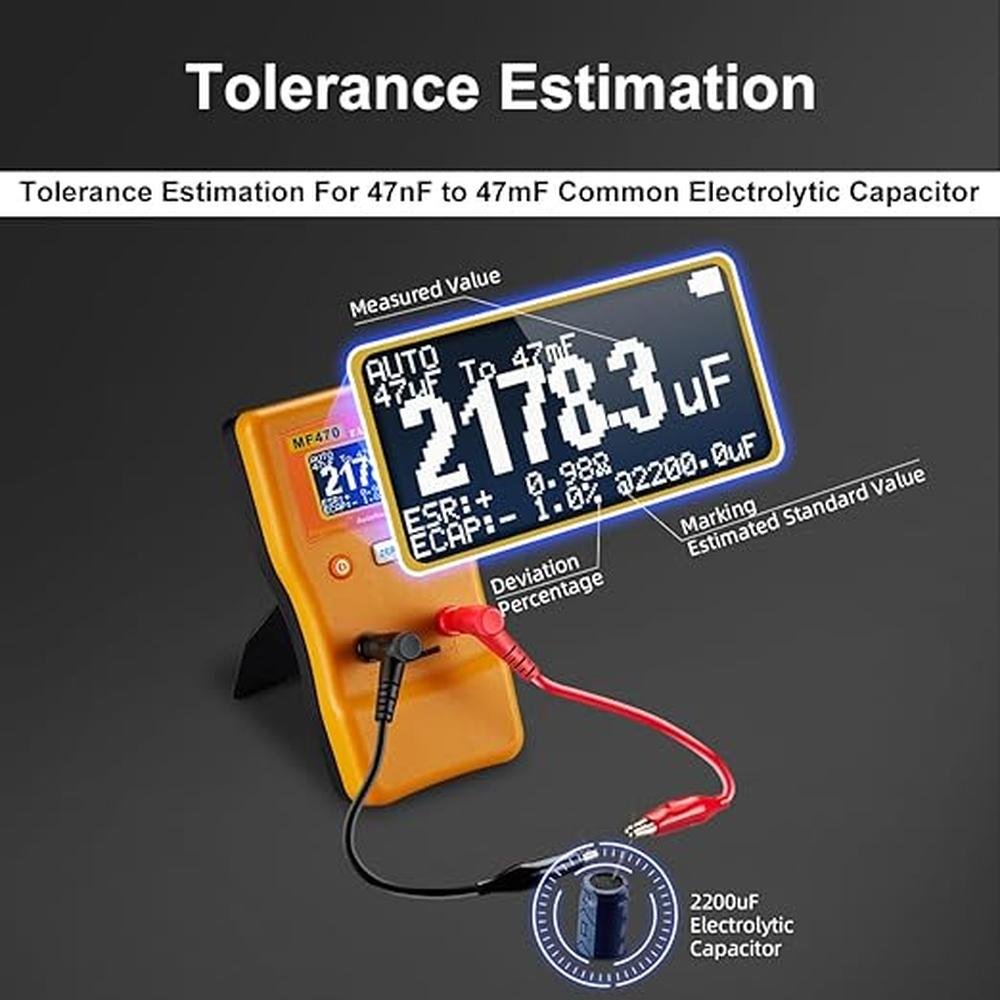

Capacitance tolerance estimation
Displays the percentage deviation between the nominal value and the actual value

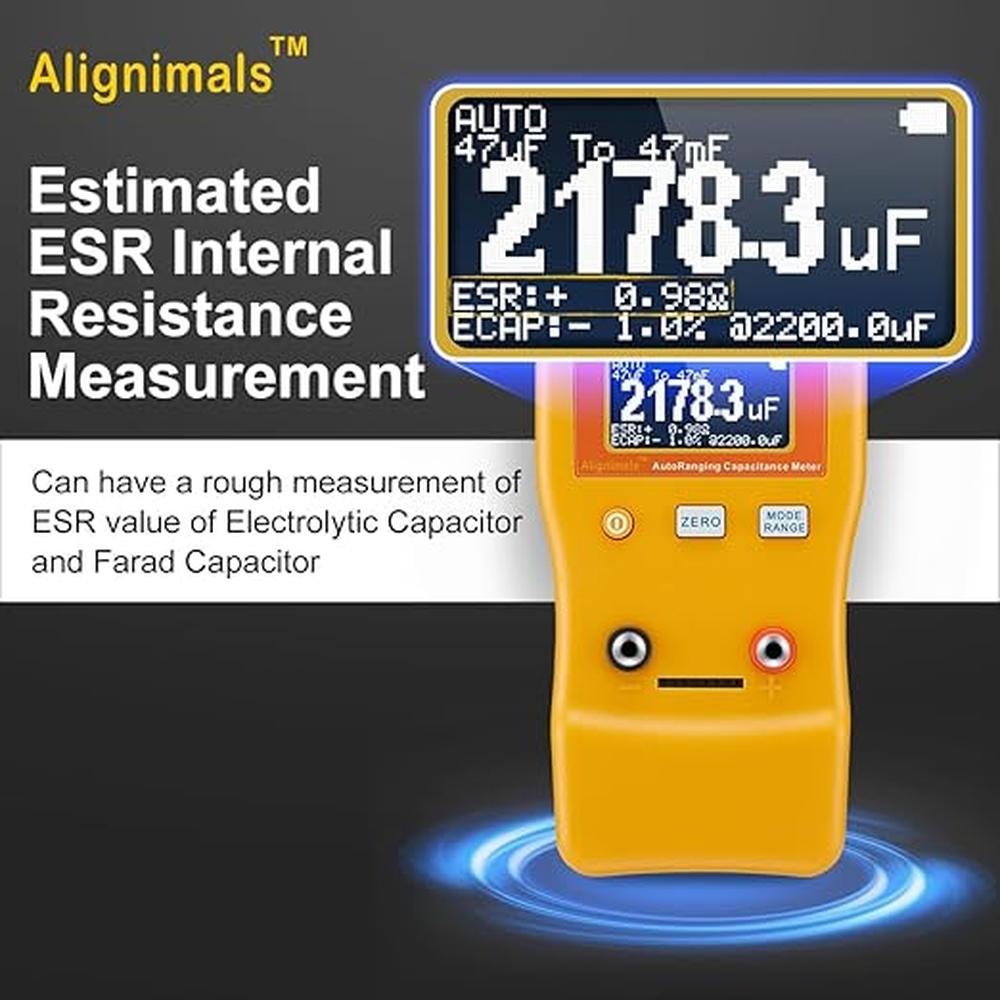

ESR internal resistance measurement
Rough measurement of ESR value of electrolytic capacitor and farad capacitor

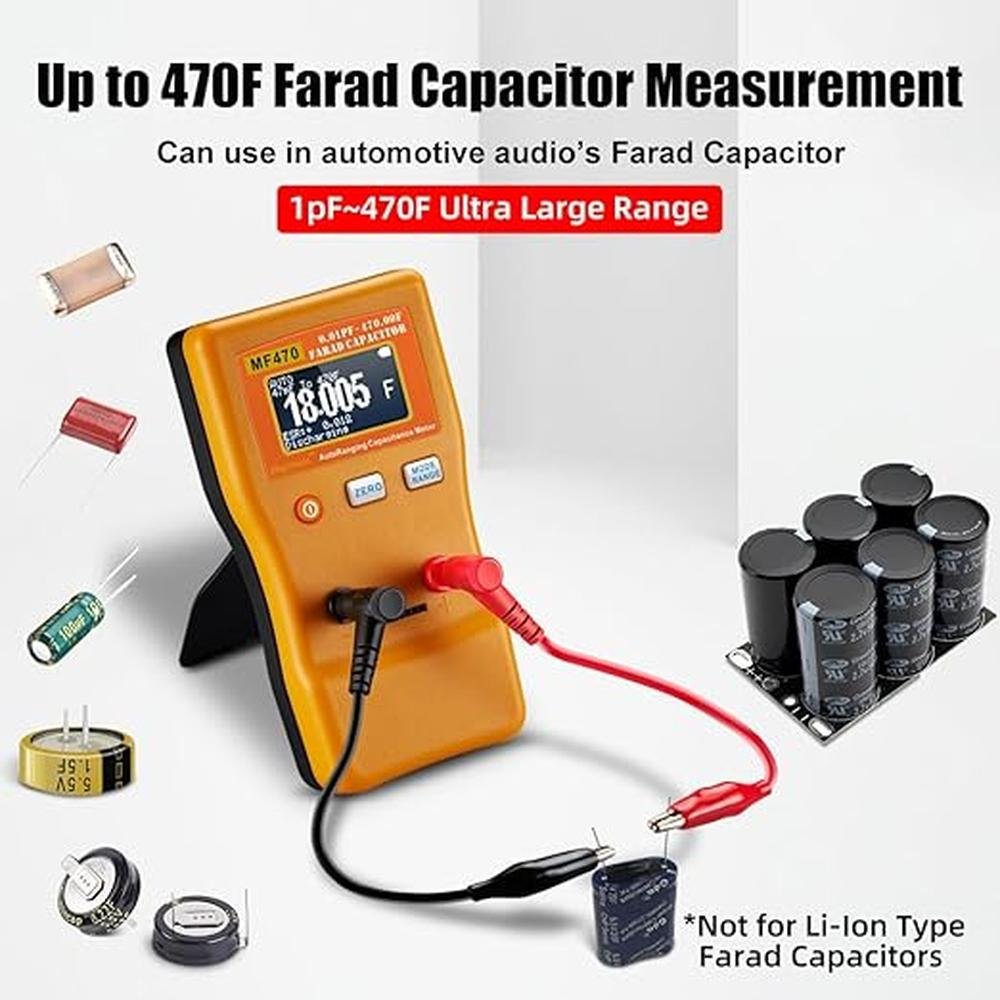

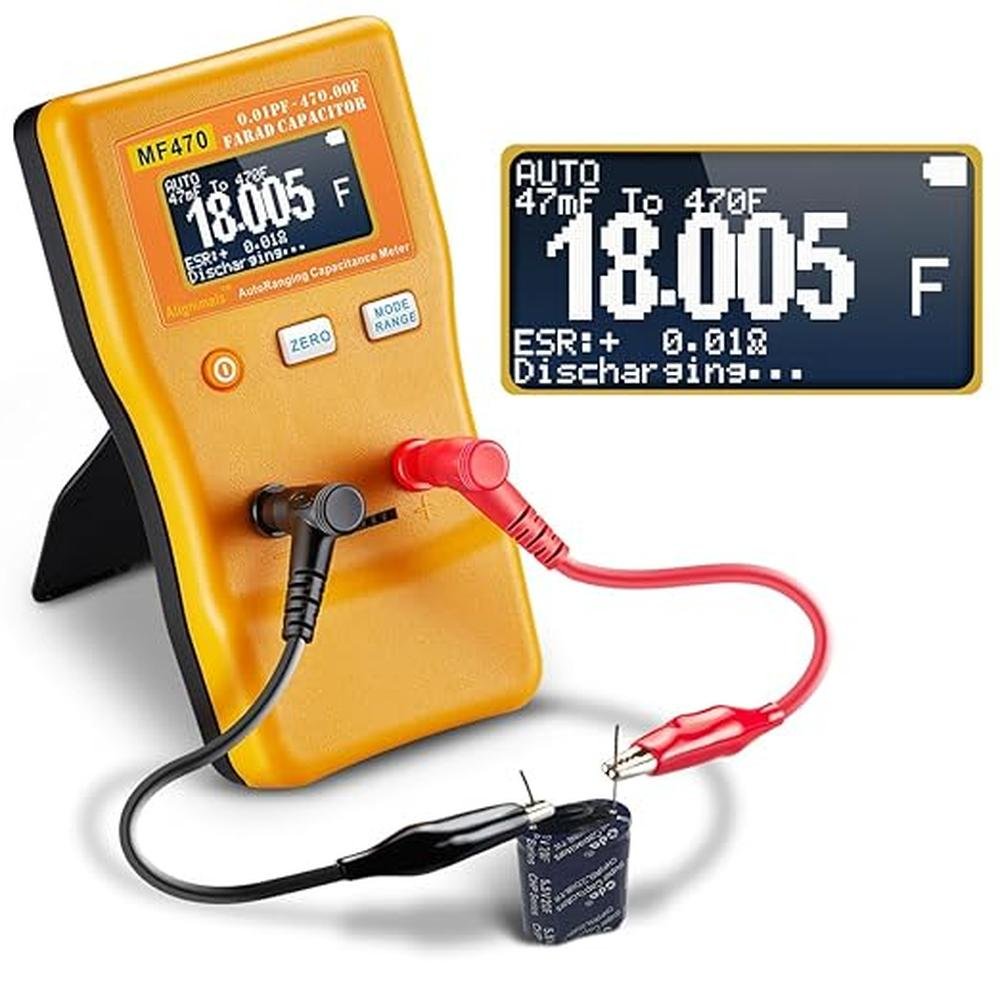

Farad measurement
Up to 470F super capacitor, some farad may have internal resistance up to 70ohm, MF470 displays the ESR.
Fast testing speed
MF470 have fast reading speed . Reading a 2200uF only take ~0.2s
Application
Measure starting capacitor 20uF
Measure 5X6800uF electrolytic capacitors in parallel
Measure 6pcs 500F Farad capacitors in series
