- About this Item
- • Accurate Airflow Pressure Tester This handheld manometer tester features a high-quality gas pressure sensor with wide range and precision. It also offers ambient temperature display and maxmin and difference air pressure modes, with a range of 2.999psi, accuracy of 0.3, repeatability of 0.2, and linearityhysteresis of 0.29.

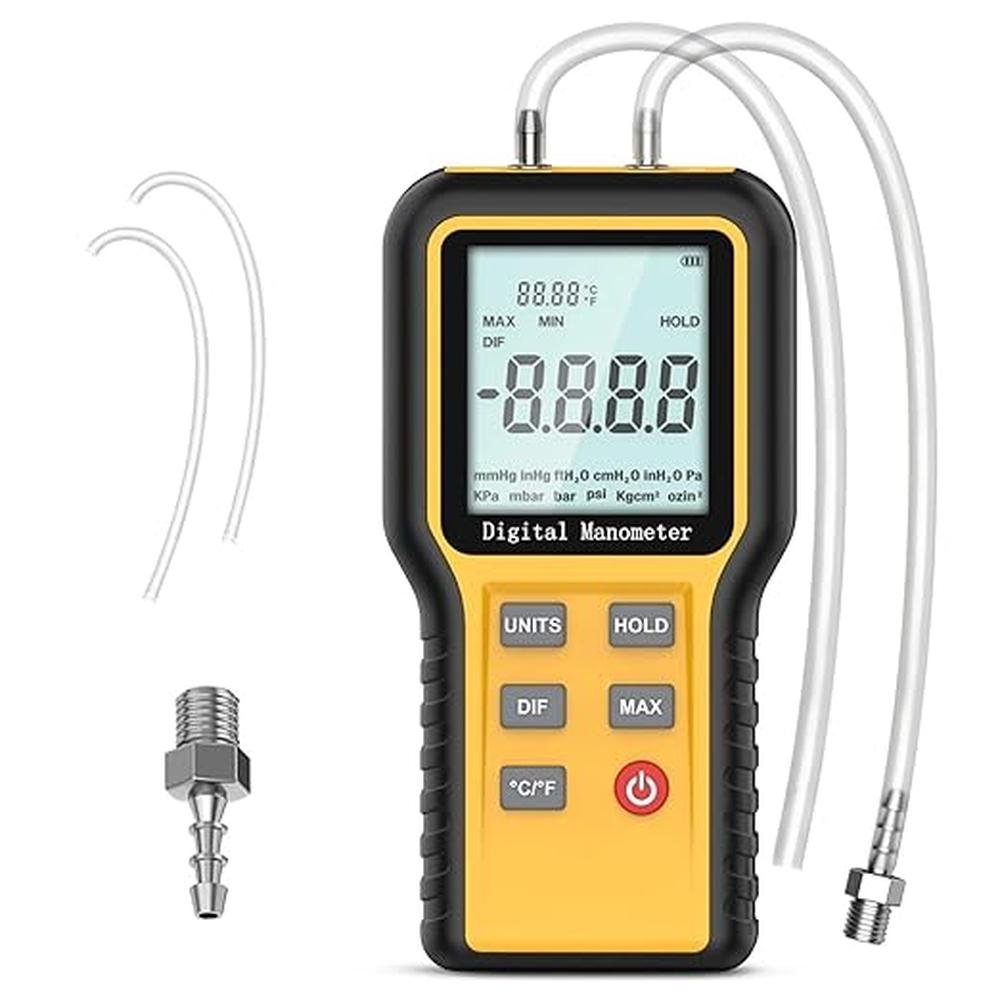

- • Versatile Differential Pressure GaugeThis monometer offers 12 optional pressure units, including mmHg, inHg, ftH?O, cmH?O, inH?O, Pa, KPa, mbar, bar, psi, Kgcm² and ozin². Comes with 2x 25cm silicone hoses and 18 inch threaded barbed fitting.

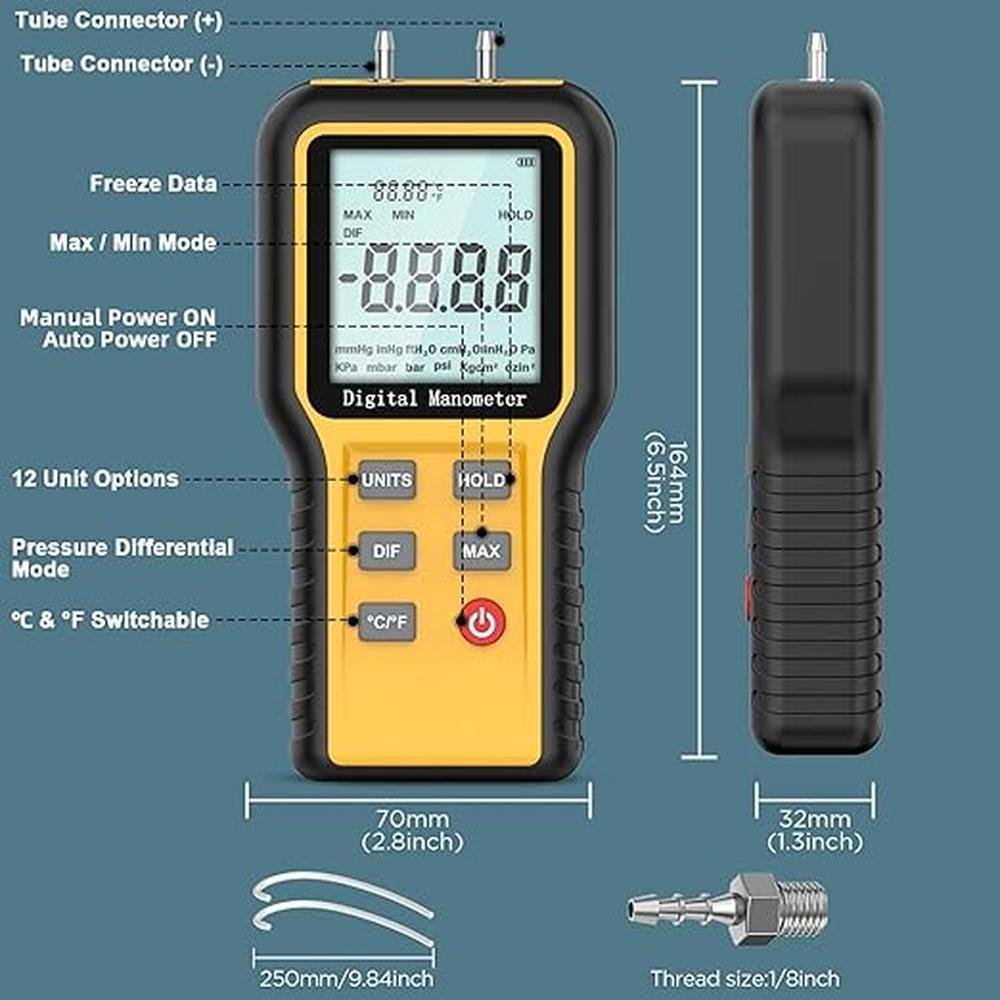

- • Single or Dual Port Pressure MeasurementThe manometer boasts two ports on the top for measuring both positive and negative pressure, allowing for accurate measurement of pressure difference (P1-P2) between two areas. Furthermore, the single pipe connector of the air pressure meter facilitates rapid measurement of current pressure values relative to the prevailing atmospheric pressure.

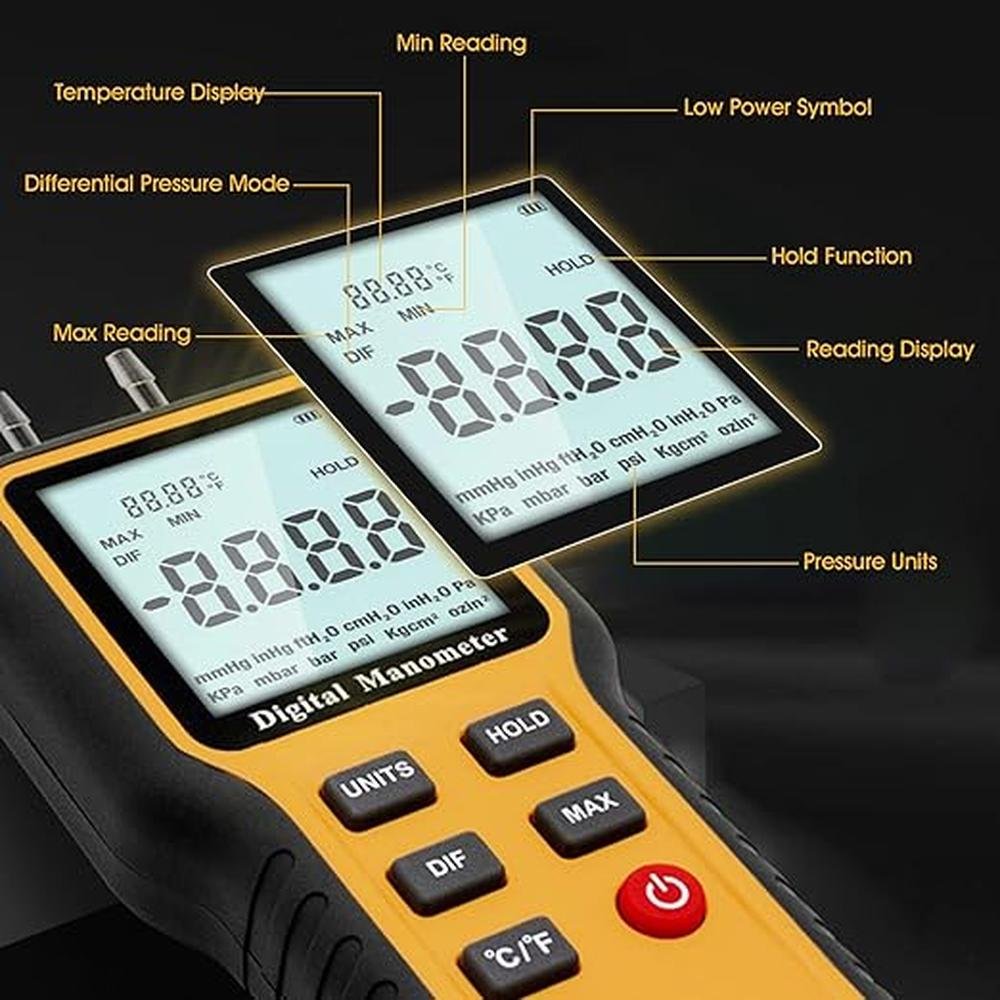

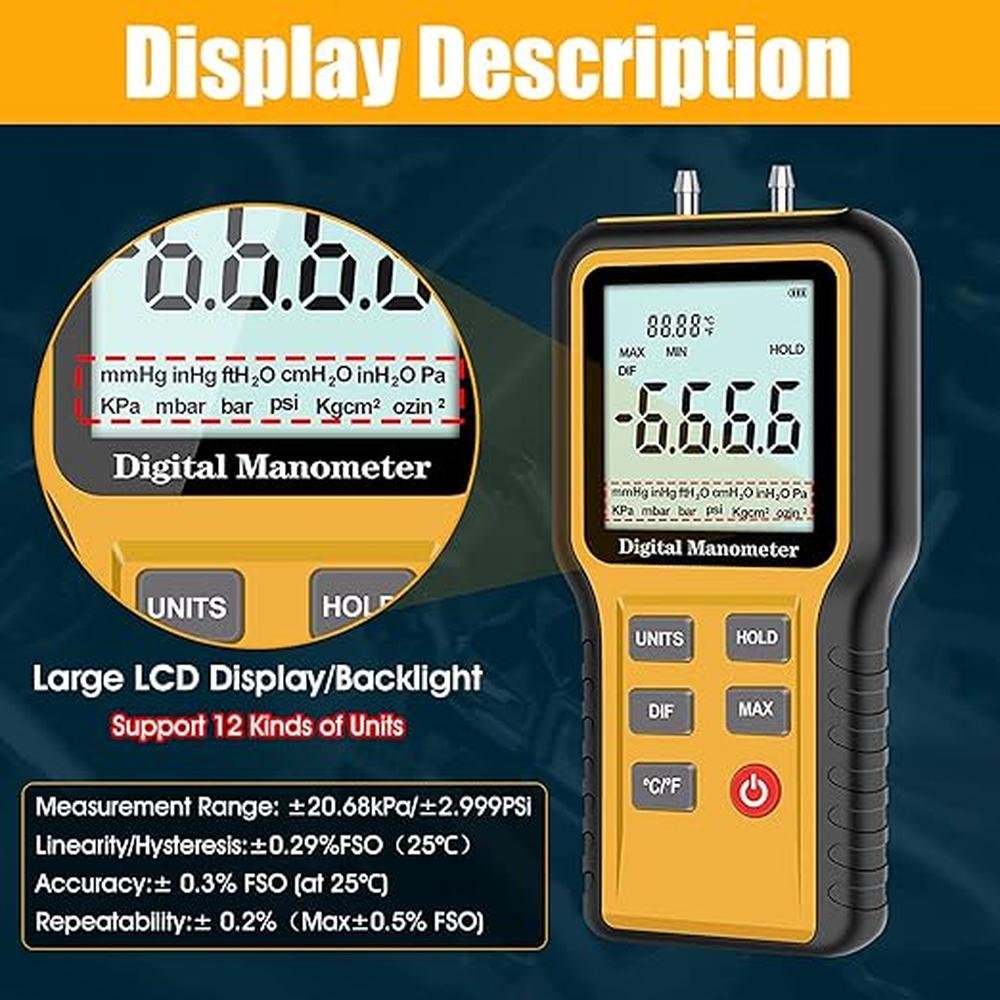

- • Enhanced Features for ConvenienceThis HVAC manometro features with large backlit LCD screen(4.954.45cm), boasted storage function for 100 groups of pressure data, allowing for easily compare and view. Auto shut down after 15 minutes of inactivity to save your battery.
Specifications & Details
| SKU | PIB0BN1KDWSL |
|---|---|
| Package Dimensions | 11.54 x 4.37 x 1.65 inches ; 0.310 kgs |
| Item model number | GR-QX1201 |
| Manufacturer | GOYERRNES |
Product description
pbiMeasure Rangeibp ul likPa 20.68 range 0.001 Resolutionli liPsinbsp 2.999 range 0.001 Resolutionli likgcm³ 0.210 range 0.001 Resolutionli liOzin2 47.99 range 0.01 Resolutionli liBar 0.206 range 0.001 Resolutionli liMbar 206.8 range 0.1 Resolutionli liinHg 6.10 range 0.001 Resolutionli limmHg 151.11 range 0.1 Resolutionli liinH2O 83.02 range 0.01 Resolutionli liftH2O 6.918 range 0.001 Resolutionli licmH2O 210.8 range 0.1 Resolutionli liPa 20680 rangenbsp 1 Resolutionli ul pp pbiMore Featuresibp ul lili liLCD displayli liAutoManual Shutdownli liLow battery promptli liDual connectionli liKeep datali liBacklightli liMAXMINli liAuto power offli liDifferential pressure modeli ul pp pp pbiTechnical Parameteribp ul liAccuracy 0.3FSO(25)li liRepeatability 0.2(MAX 0.5FSO)li liLinearity Hysteresis 0.29FSO(25)li liMeasuring rate 0.5 secondsli liPower supply 9V (included)li liOut of range indicationErr0li liUnder range indicator Err1li liData storage 100 groupsli liSize 1647032mm6.462.761.26inli liWeight 200g0.44lbli ul pp pbiPackage Includedibp ul li1x Digital pressure gaugeli li1x Barb metal connectorli li2x Soft hosesli li1x Packing boxli li1x User manualli ul
