- About this Item

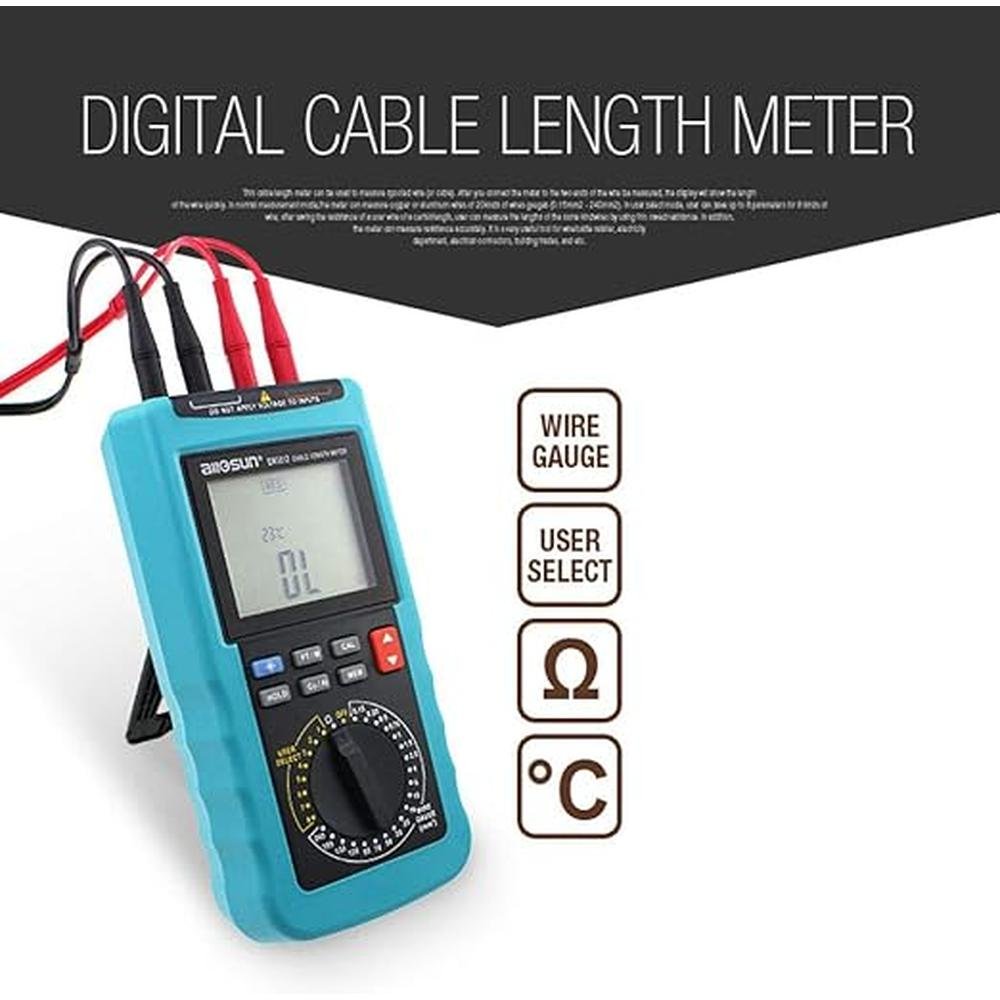

- • The cable length meter is built-in buzzer,back-light and 4 12-digit display,8 memory locations in user select mode. WIRE GAUGE(m) it only can measure copper or aluminum UESER SELECT can measure the length of any metal wires,it can save the result of resistance.
- • The cable length measurer reads in feet or meters,measure range 0-100000 ft0-30000m.Please kindly check whether there is interference from the alternating magnetic field around the measurement site, the value displayed by the measurement will keep beating.
- • The cable length meter counter can measure copper and aluminum cables,if the measurement results show that the cable length is larger than the actual cable, it may be because of the cable material.The metal purity of the cable is different, resulting in different resistance.But the deviation will not be large.
- • The cable length counter can measure cable of cross section area from 0.15mm² - 240mm². Wire Gauge, it can t save the result of the resistance, just choose the right range to operate is ok.No matter you are measuring cables below 1000m or above, the measuring method is the same.
Specifications & Details
| SKU | PIB07B1XMBTV |
|---|---|
| Is Discontinued By Manufacturer | No |
| Package Dimensions | 9.25 x 8.15 x 3.86 inches ; 0.522 kgs |

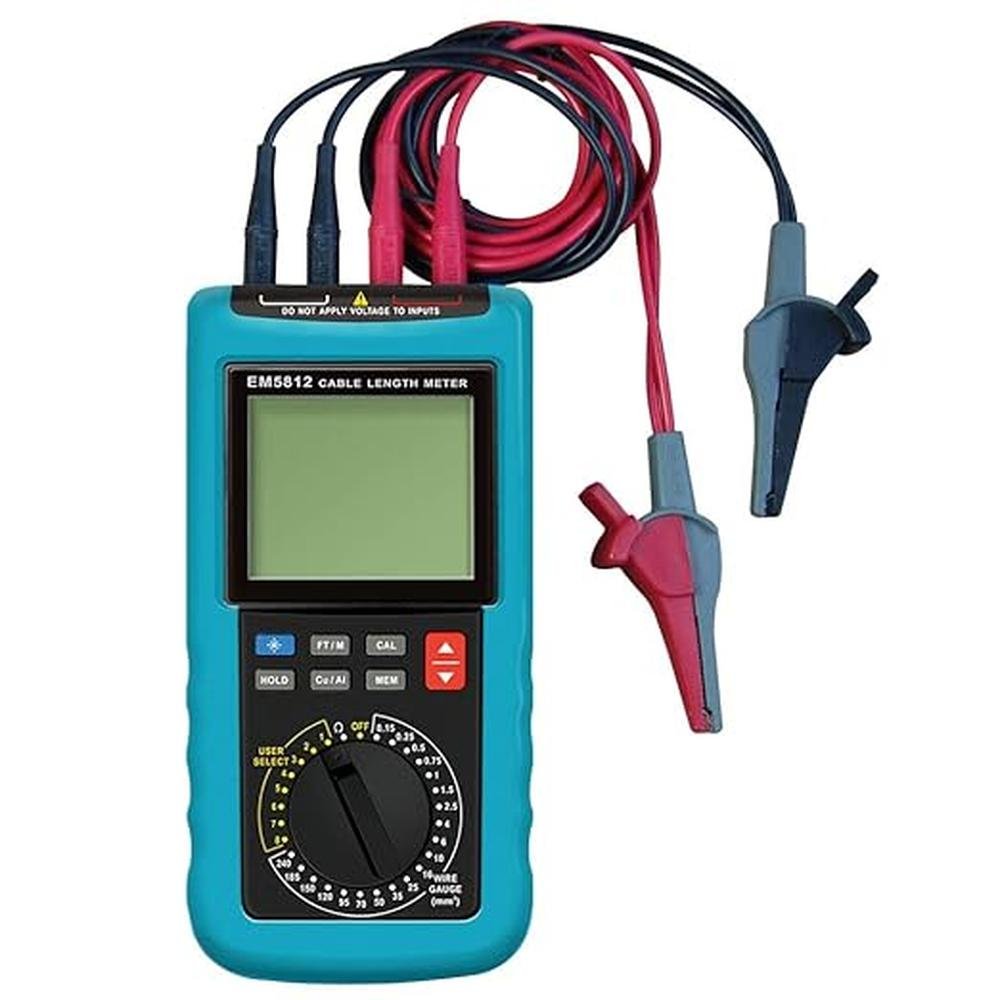

| Item model number | EM5812 |
| Batteries | 6 AA batteries required. (included) |
| Manufacturer | Zhangzhou Eastern Intelligent Meter Co., Ltd |
Product description

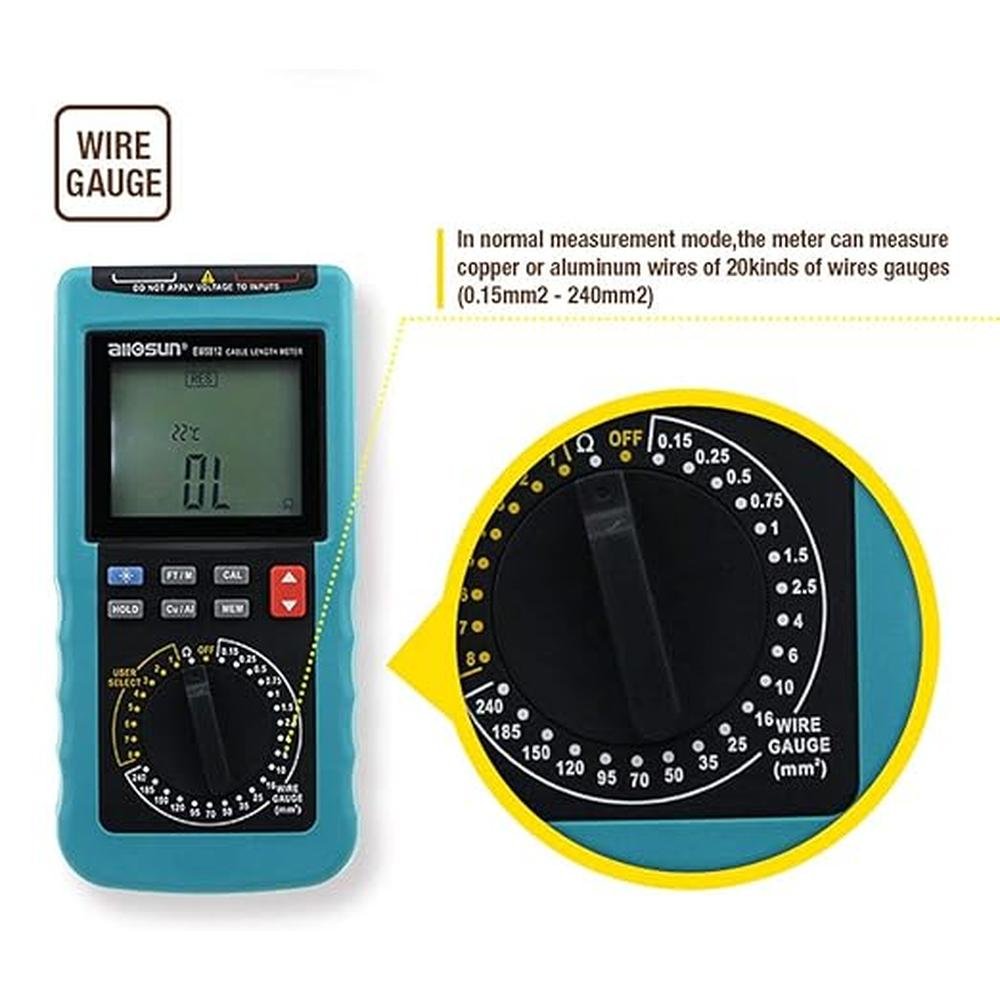

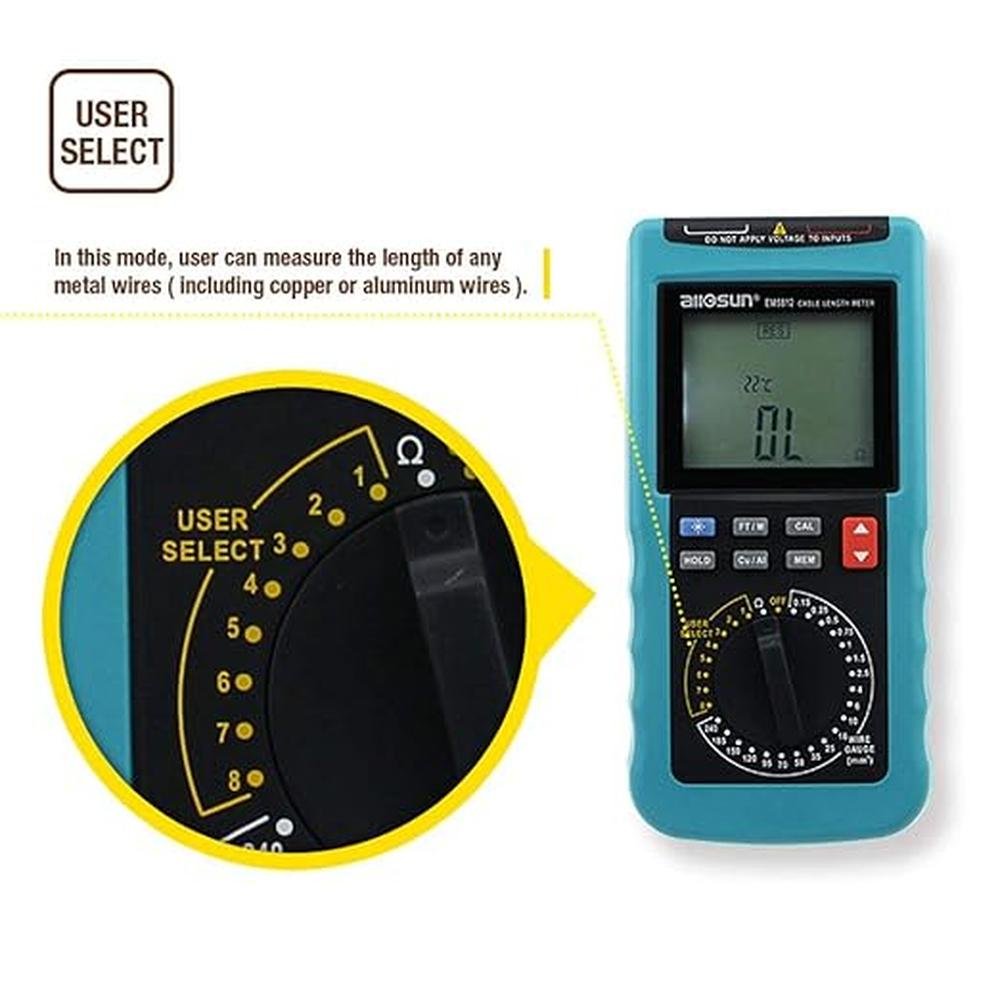

BGENERAL INSTRUCTIONBbrThis cable length meter can be used to measure spooled wire (or cable). After you connect the meter to the two ends of the wire to be measured, the display will indicate the length of the wire quickly.brIn normal measurement mode, the meter can measure copper or aluminum wires of 20 kinds of wire gauges. In user select mode,bruser can save up to 8 parameters for 8 wire samples after saving the resistance of a copper or aluminum wire of a certain length, user can measure the lengthsbrof other wires of the same kind by using this saved resistance. In addition, the meter can measure resistance accurately.brIt Is a very useful tool for wirecable retailer, electricity department,electrical contractors, building trades, and etc.brbrBFeaturesBbr1.Bulit-in buzzer, backlight and 4 12-digit displaybr2. Reads in feet and metersbr3. Measures copper and aluminum cablesbr4.20 pre-set wire gauge settings (0.25m-240m, 8 memory locations in user select modebr5. Automatic temperature compensationbrbrBSpecificationBbrLength Measurement Range 0-100000ft, or 0-30000mbrLength Measuring Ranges 1000m10000m30km, or 1000ft10000ft100kftbrLength Resolution 0.1m1m0.01km, or 0.1ft1ft0.01kftbrLength Mearsurement Accuracy (1rdg 3ft or 1m)brResistance Measurement Range 0.1m?-1999.9?brResistance Measuring Ranges 1?10?100?2000?brResistance Resolution 0.1m?1m?0.01?0.1?brResistance Measurement Accuracy (1rdg 3 digits)brTemperature Measurement Range 0C to 40CbrTemperature Measurement Accuracy 1.5CbrOverload Protection Max. 50V between terminalsbrBattery 1.5V, AA or equivalent, 6 piecesbrSize 1989856mmbrWeight about 518gbrbrBSet IncludesBbrTest Lead with Alligator Clip x 1brCopper Rod X 1brEnglish User Manual x 1
