Product description

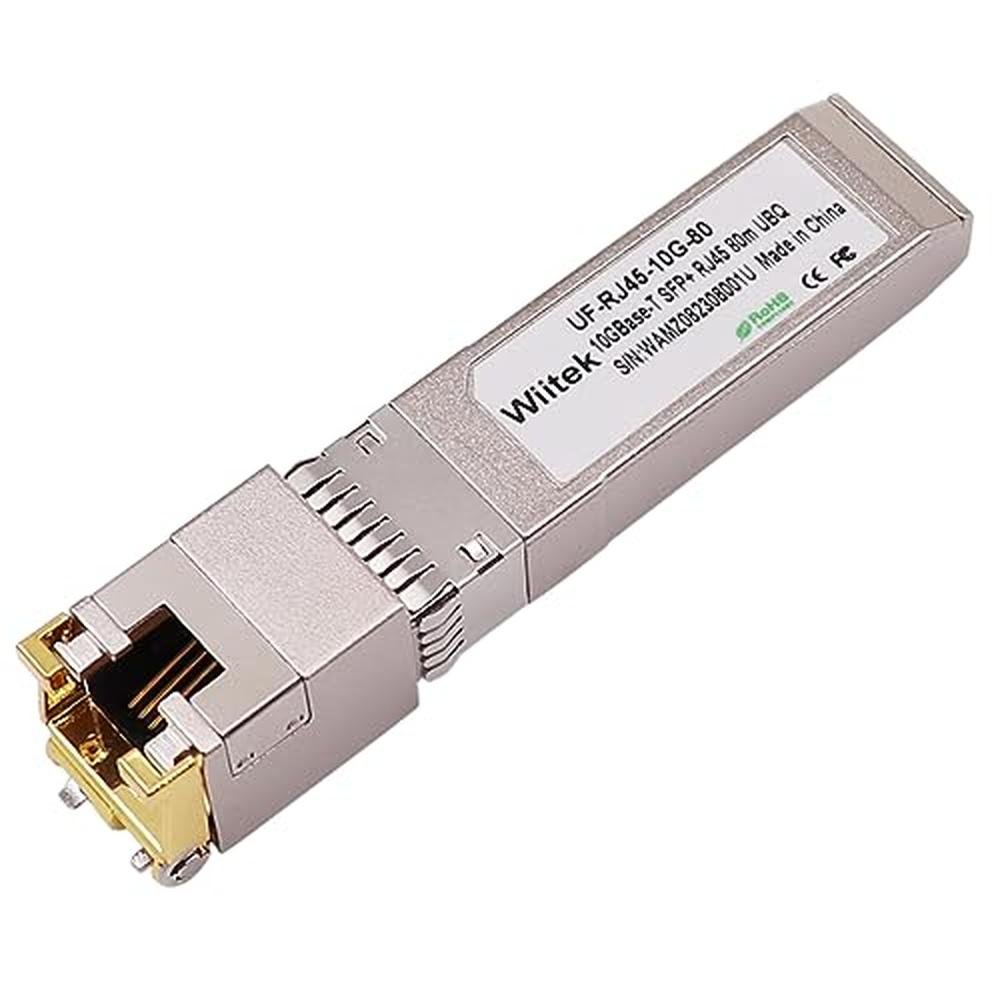

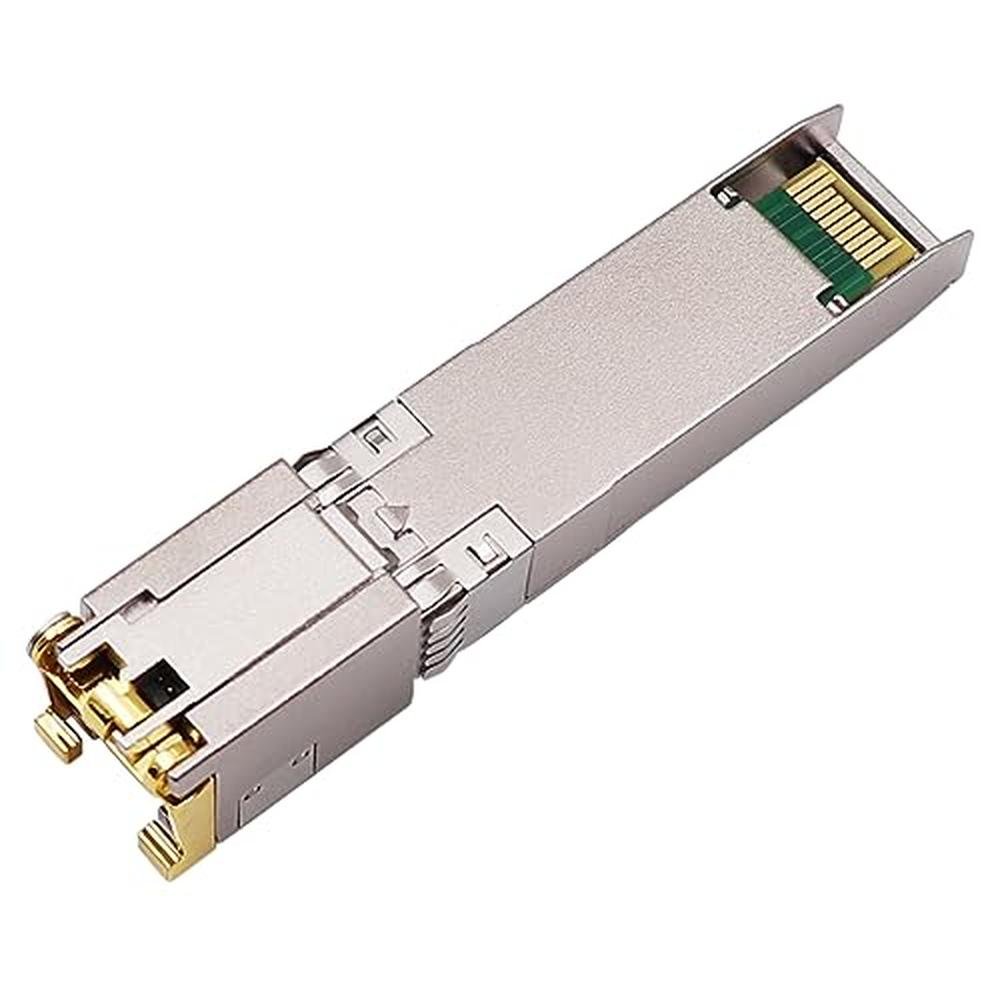

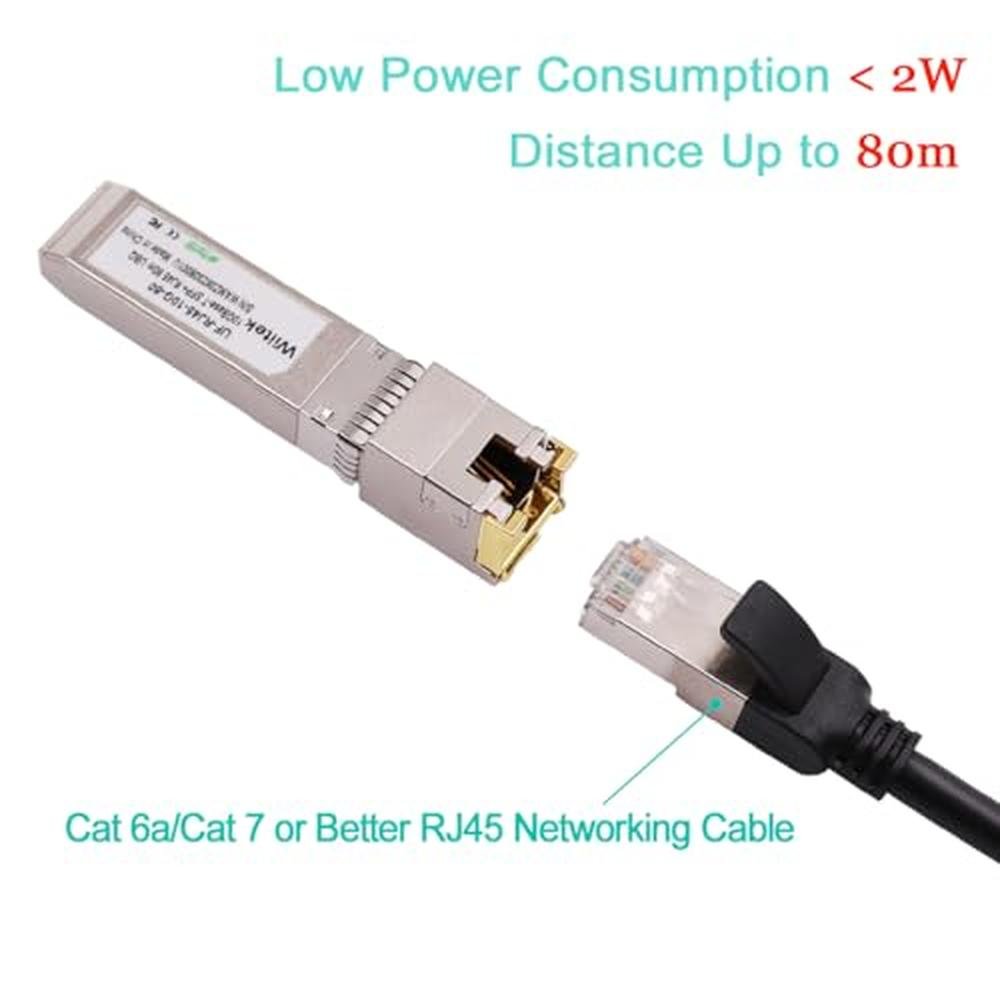

bUbiquiti UF-RJ45-10G Compatible 10GBase-T SFP 10 Gigabit RJ45 Copper SFP Transceiver 80-Meterbbrbr bFeaturesbbr Supports Links up to 80m using Cat 6a7 or Better Cablebr SFF-8431 MSA Compliantbr IEEE 802.3az and 802.3an Compliantbr Hot-pluggable SFP footprintbr TX Disable and RX Los functionbr Fully metallic enclosure for Low EMI Emissionsbr 3.3V single power supplybr Built-in Broadcom chip, Max. Power Consumption 2.5W br Compact RJ-45 connector assemblybr Access to physical layer IC via 2-wire serial busbr MDIMDIX Crossoverbr Multiple Loopback Modes for Testing and Troubleshootingbr Built-in Cable Monitoring and Link Diagnosticbr Unshielded and Shielded cable supportbr Operating case temperature range of 0C to 70Cbr br bApplicationsbbr 10 Gigabit Ethernet over Cat 6ACat 7 or Better cablebr br

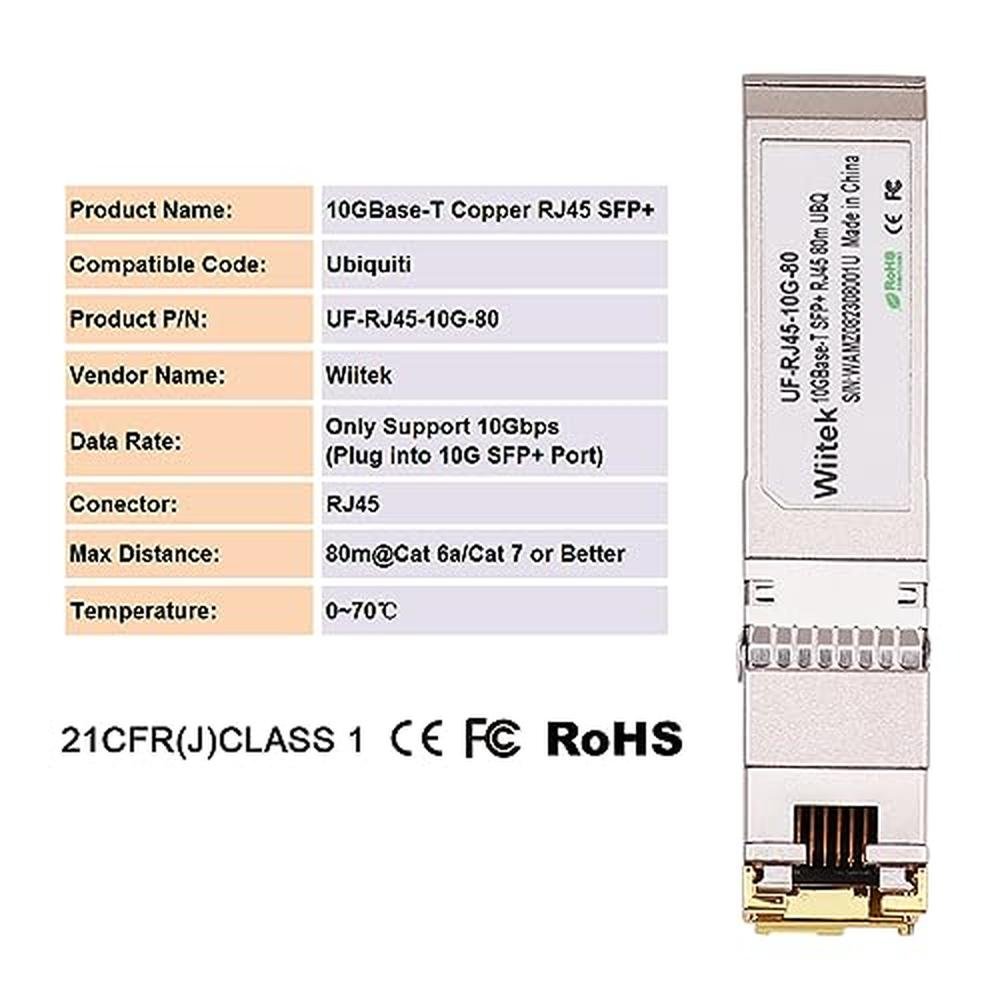

Technical specifications
| SKU | PIB0CF9SXTK7 |
|---|---|
| Connector Type | Sfp+ |
| Cable Type | Ethernet |
| Compatible Devices | Router, Server, Switch |
| Other Special Features of the Product | 2.5GBase-T/5GBase-T/10GBase-T compatible, Low Power Consumption Below 2W, RJ45 Cable length support up to 80m |
| Compatible Phone Models | No Compatible Phone Models |
| Ethernet Cable Category | Cat 7 |
| Connector Gender | Male-to-Female |
| Data Transfer Rate | 10 Gigabits Per Second |
| Number of Pins | 10 |
| Frequency | 10 GHz |
| Maximum Voltage | 3300 Millivolts |
| Connectivity Technology | SFP+ to RJ45 |
