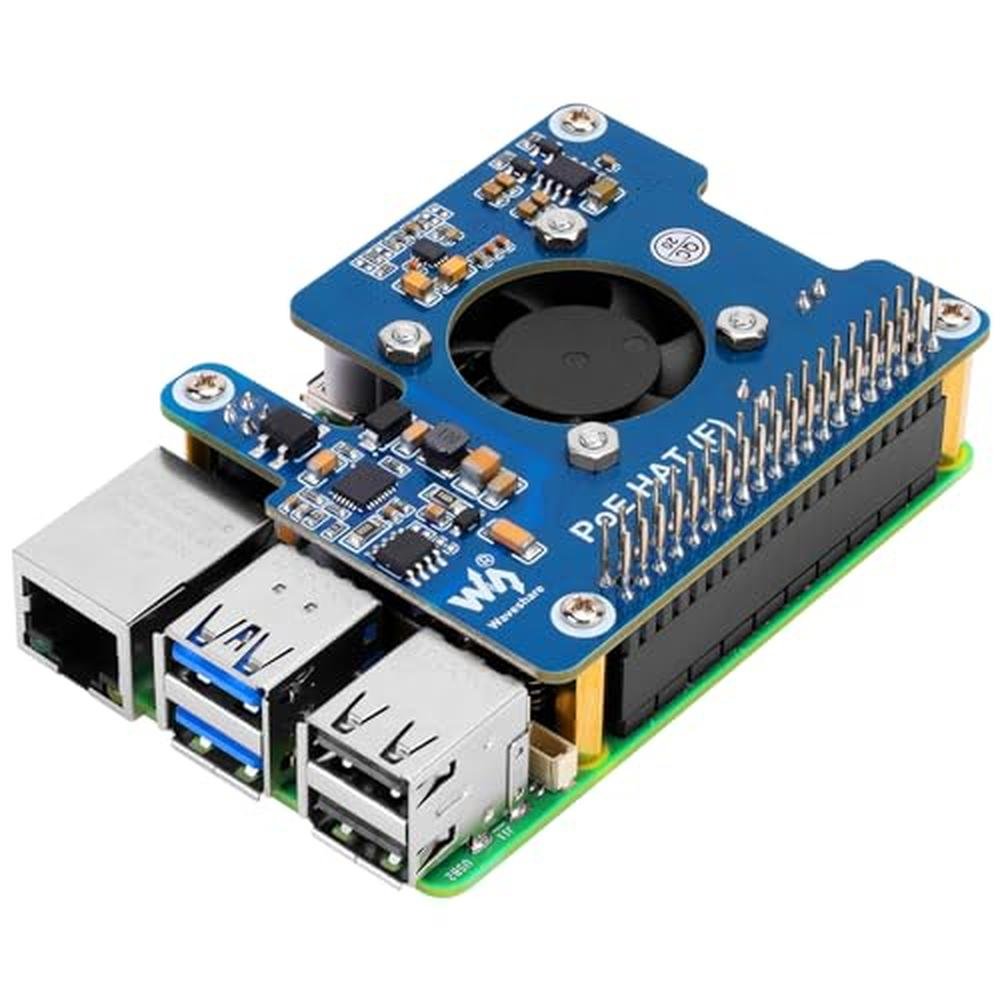

MakerFocus PoE HAT(F) for Raspberry Pi 5, Power Over Ethernet Hats with Metal Heatsink and Active Cooling Fan, Supports IEEE 802.3af/at Network, 5V/12V Power Output and SMPS

Product description

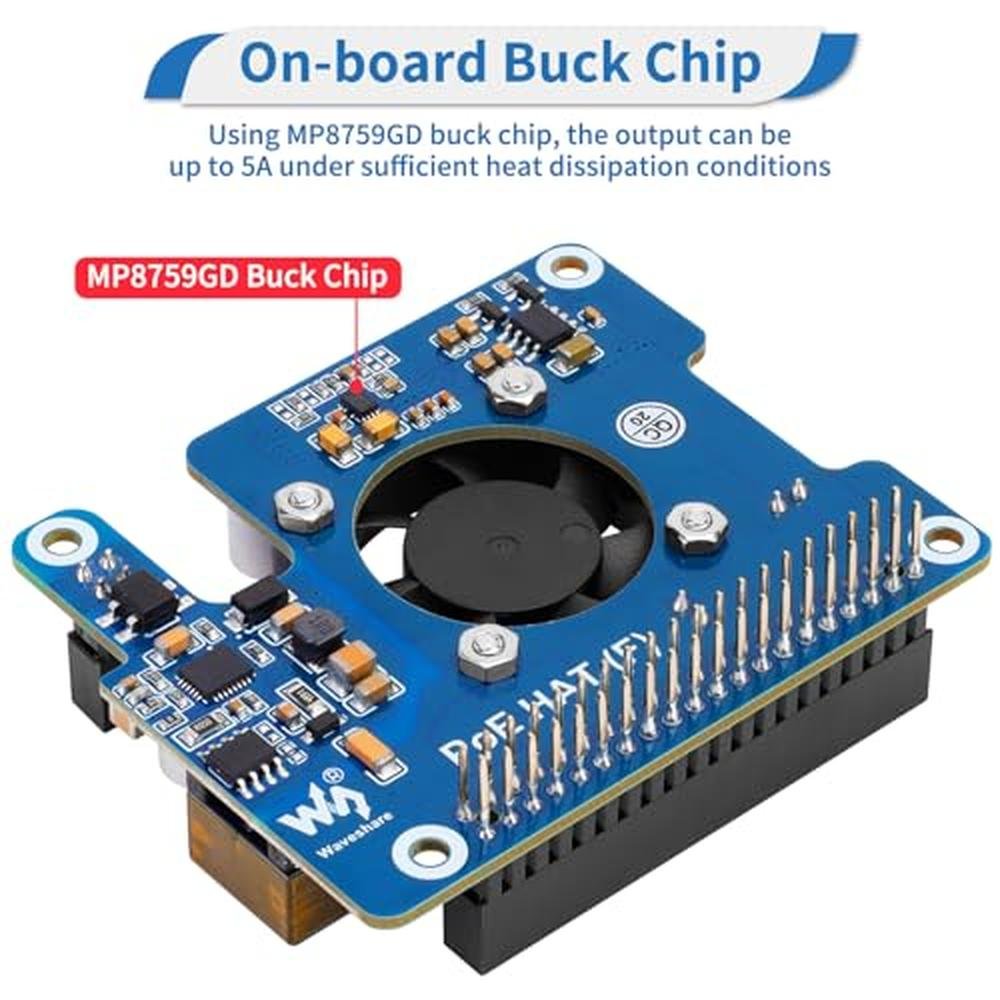

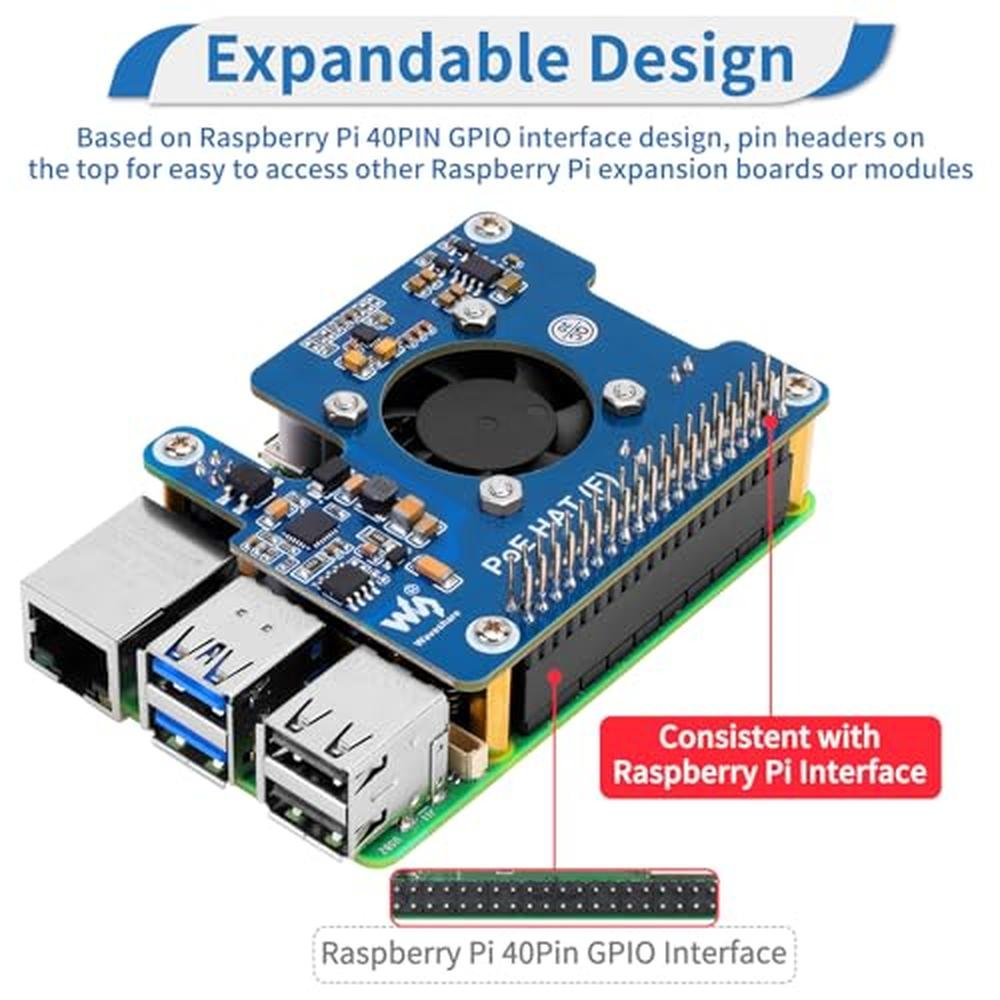

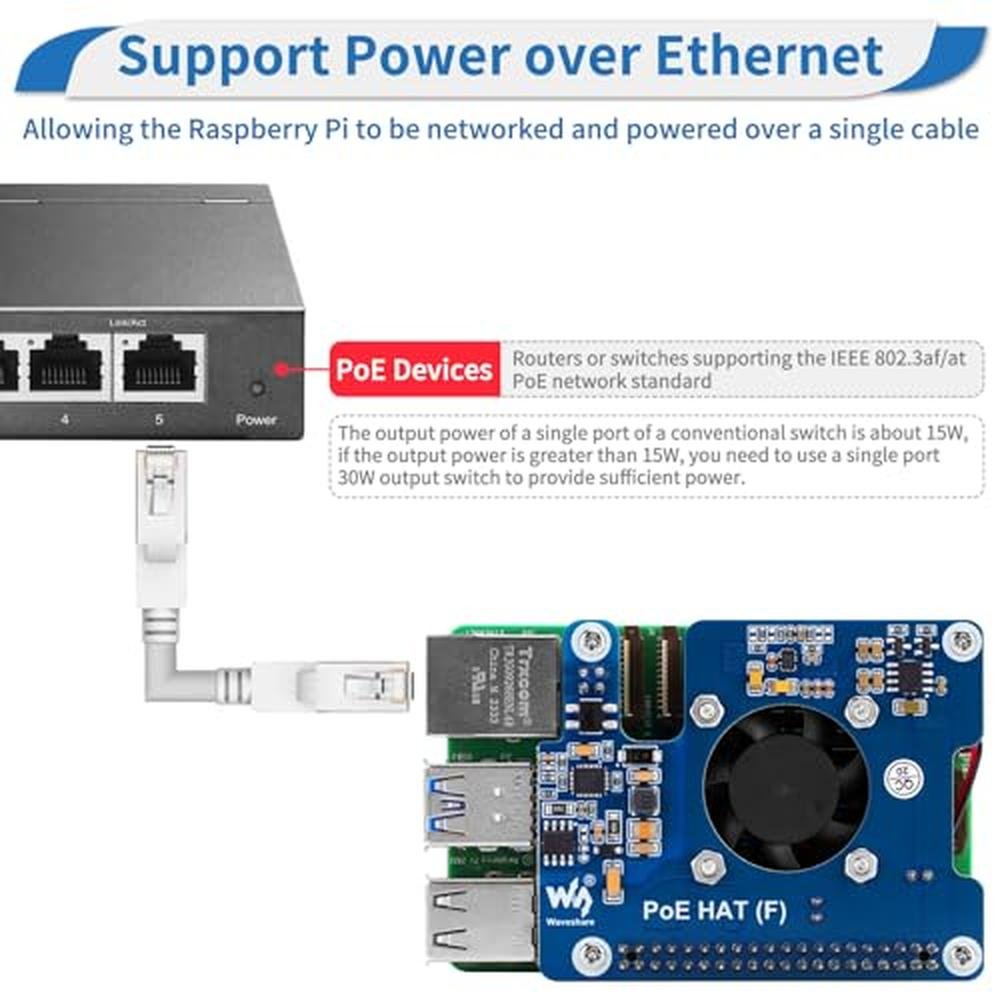

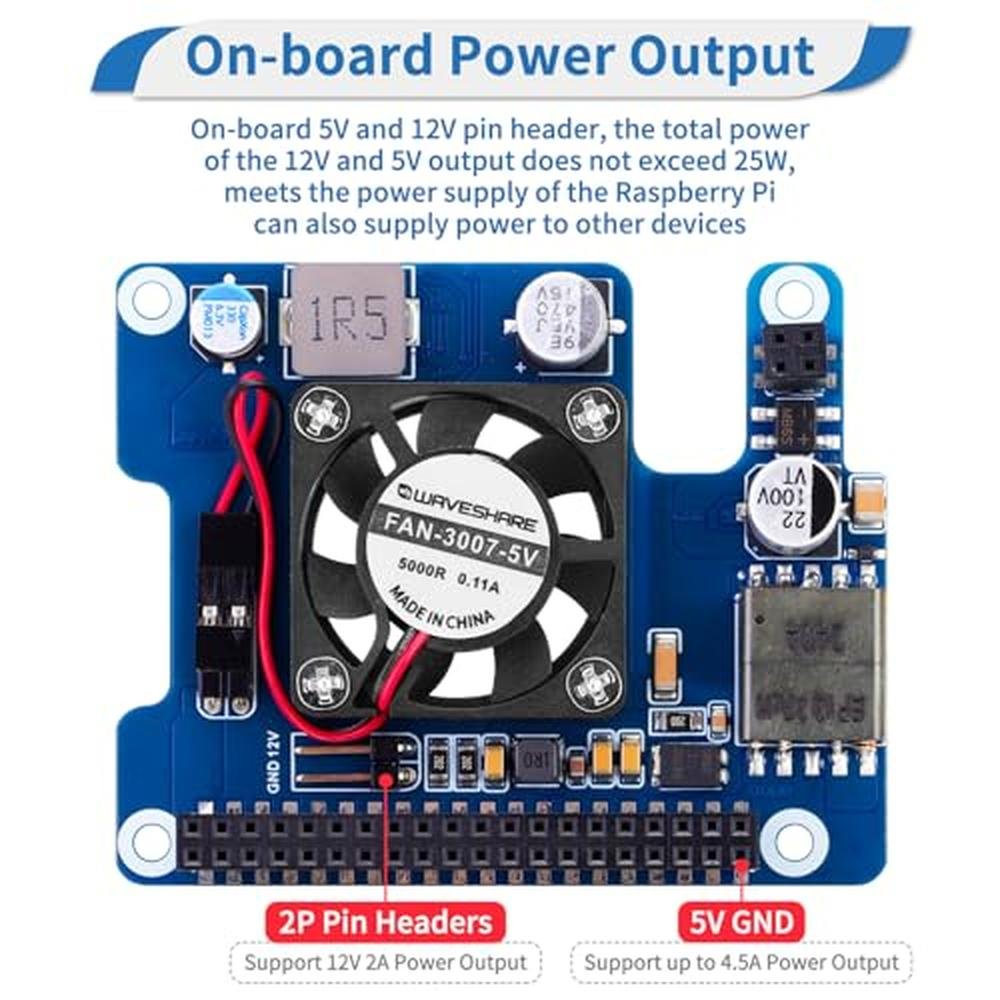

Descriptionbr Power over Ethernet (PoE) expansion board for the Raspberry Pi 5, supporting the IEEE 802.3afat networking standard. It is suitable for use with PoE routers or switches that support the IEEE 802.3afat networking standard, allowing the Raspberry Pi to be networked and powered over a single cablebrbr Highlightsbr 1. Based on the Raspberry Pi 40PIN GPIO interface for Raspberry Pi 5br 2. Supports PoE Power over Ethernet, supports IEEE 802.3afat PoE network standardbr 3. Fully isolated switched mode power supply (SMPS)br 4. Onboard high speed active cooling fan and metal heat sink to accelerate heat dissipationbrbr How to Install?br Put on the thermal tape first, then install the metal heat sink, and then install the PoE expansion boardbrbr Parametersbr PoE power input 37V 57V DC inputbr Dimensions 56.5 70.0 mmbr Power Outputbr GPIO pin 5V 4.5A (max)br 2P Pin 12V 2A (Max)brbr Notebr The output power of a single port of a conventional switch is about 15W, if the output power is greater than 15W, you need to use a single port 30W output switch to provide sufficient powerbrbr Package Contentbr 1 Raspberry Pi 5 PoE HAT (F) br 1 Metal Heatsinkbr 3 Thermal Tapebr 5 Studs br 9 Screws
