Product description

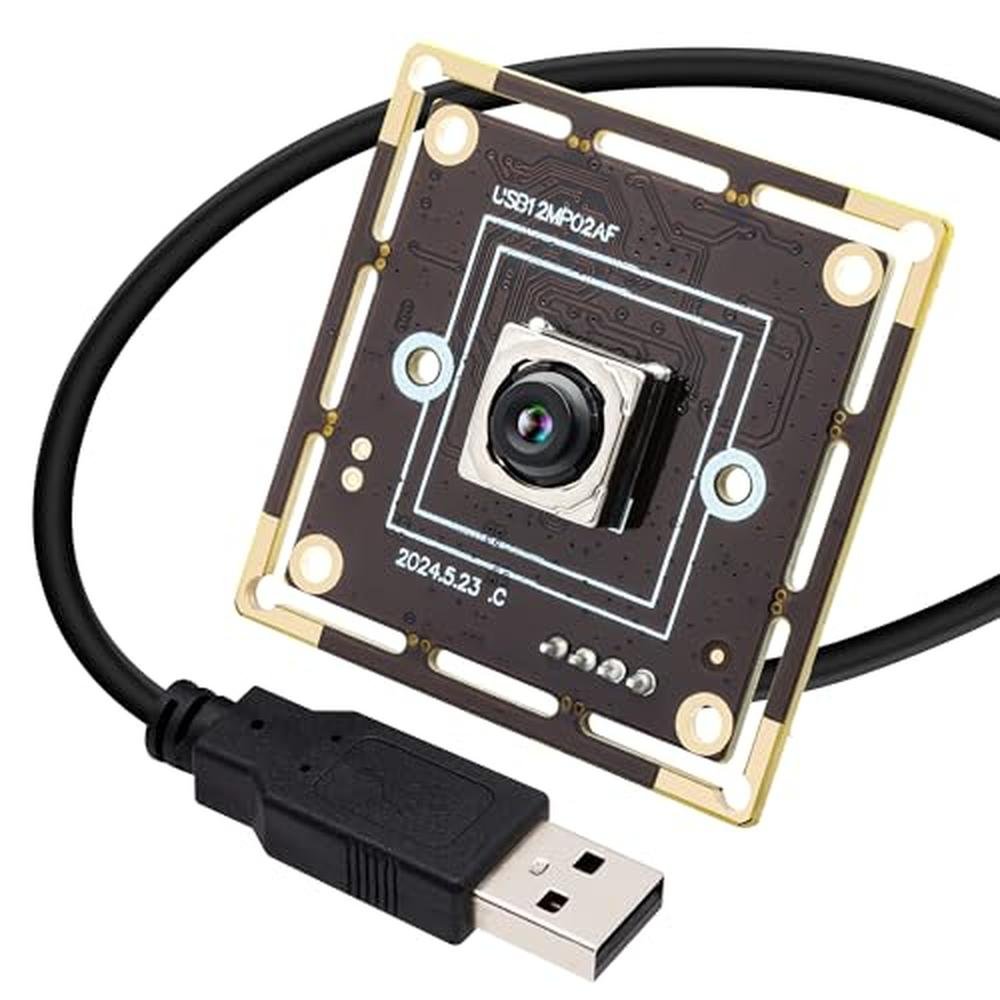

bMain Specificationsbbr Model IF-USB12MP02AF-V65br Sensor CMOS IMX362br Sensor Size 12.55 inchbr Pixel Size 1.4um x 1.4umbr Image Area 6.8mm x 5.67mmbr Max. Resolution4000(H) X 3000(V) 12 Megapixelbr Default Resolution 4000(H) X 3000(V)br Compression Format MJPEG YUY2 (YUYV)br Auto Focus Mode PDAF Modebr Focus Speed About 200ms at 60fps 300ms at 30fpsbr Resolution Frame Ratebr 4000 x 3000 MJPEG15fps 3840 x 2160 MJPEG30fpsbr 2592 x 1944 MJPEG30fps YUY23fps 2560 x 1440MJPEG30fps YUY23fpsbr 2048 x 1536 MJPEG30fps YUY23fps 1920 x 1080 MJPEG60fps YUY25fps 1600 x 1200 MJPEG45fps YUY25fps 1280x 1024 MJPEG60fps YUY210fpsbr 1280 x 720 MJPEG60fps YUY210fps 800 x 600 MJPEG45fps YUY225fpsbr 640 x 480 MJPEG45fps YUY225fps 640 x 360 MJPEG60fpsbr 320 x 240 MJPEG45fps YUY225fpsbr Min Illumination 0.5 Luxbr Shutter Type Electronic Rolling Shutter Frame Exposurebr Connecting Port Type USB2.0 High Speedbr Free Drive Protocol USB Video Class (UVC)br AEC Support AWB Support AGC Supportbr Adjustable Parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposurebr Lens Parameter AF LENS Focus 3.3mm , DFOV about 76 Degree , HFOV about 65 Degreebr Power Supply USB BUS POWER 4P-2.0mm Socketbr Operating Voltage DC 5Vbr Working Current 160mA180mAbr Working Temperature -2060br Storage Temperature -2085br
Technical specifications
| SKU | PIB0DZB9N6SQ |
|---|---|
| Sensor Type | CMOS |
| Connectivity Technology | USB |
| Features | 3000P Autofocus USB Camera Module Feature Ensures That You Can Capture Clear and Crisp Images with Ease No Matter What You're Working On |
| Water Resistance Level | Not Water Resistant |
| Has Image Stabilization | No |
| Form Factor | Compact |
| Style Name | 12 Megapixel Autofocus USB Camera Module with Great Picture Built in CMOS IMX362 Sensor Color USB Camera with Max 4000x3000 High Resolution |
| Operating System | Linux (Or Compatible) |
