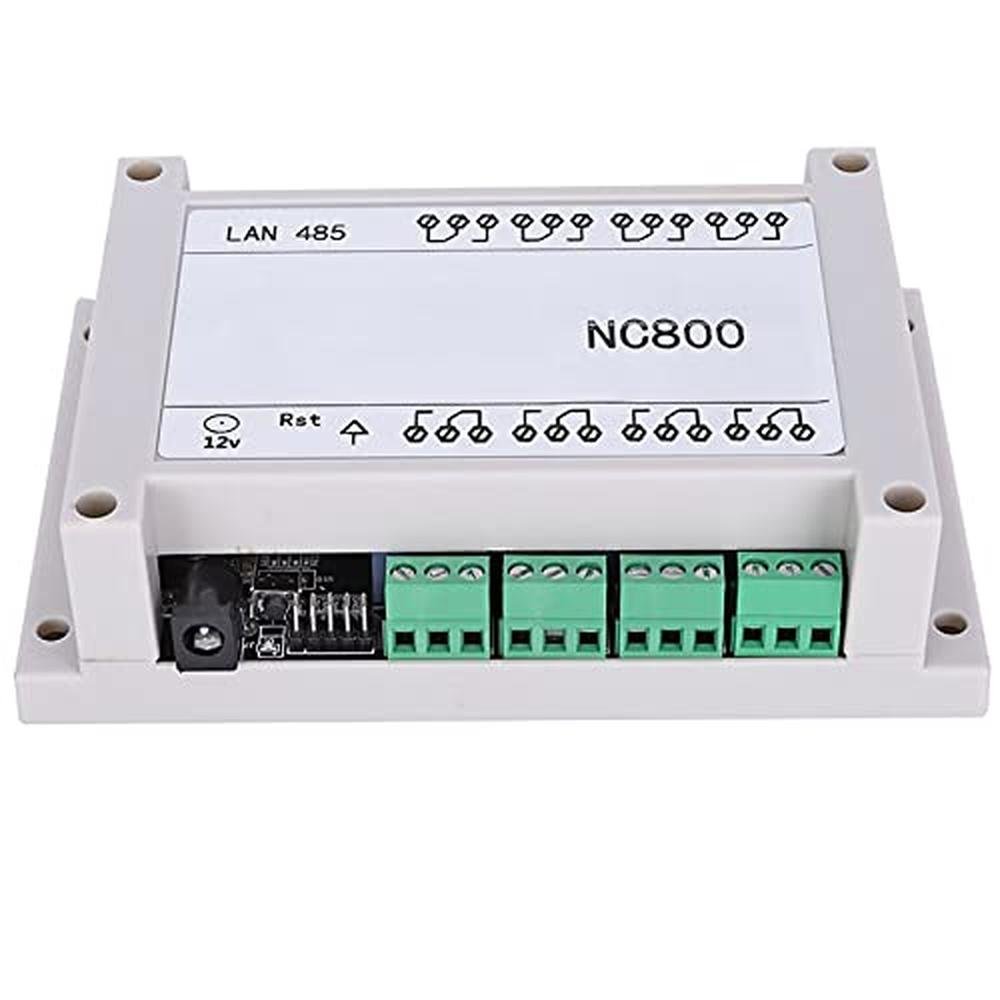

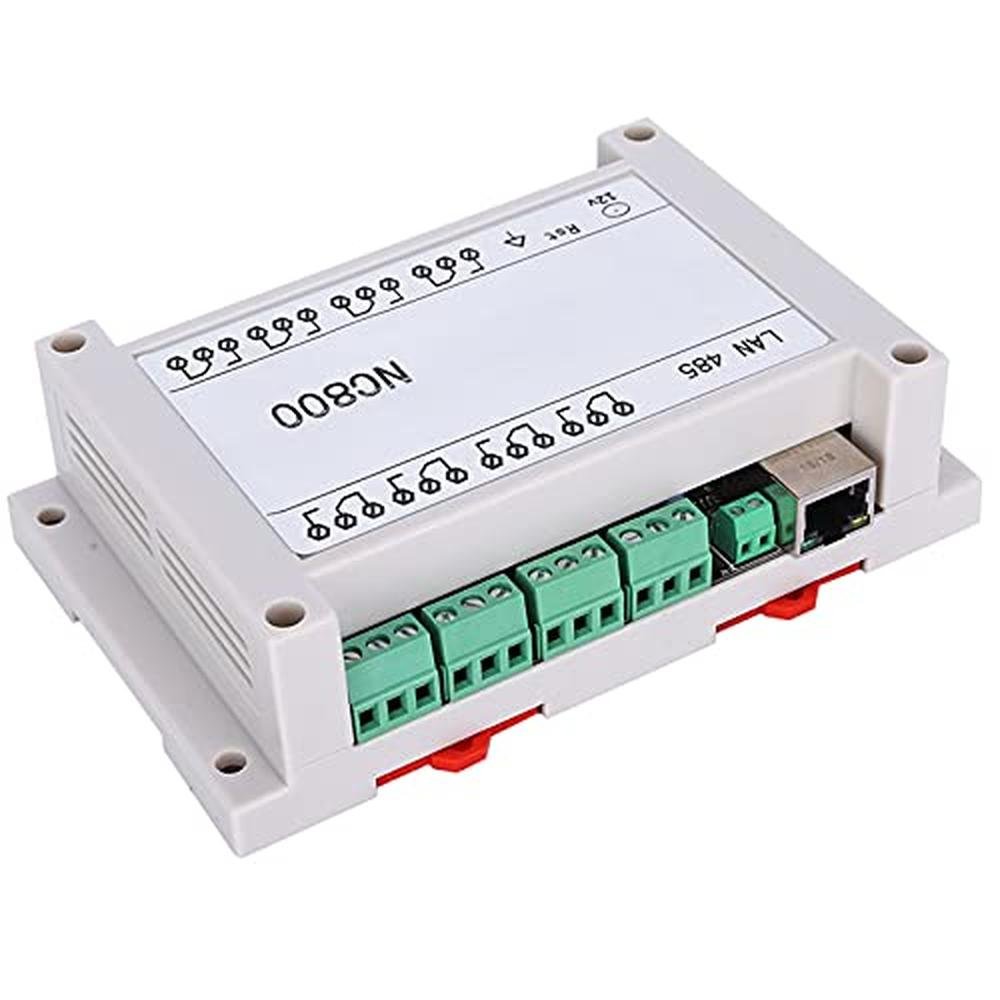

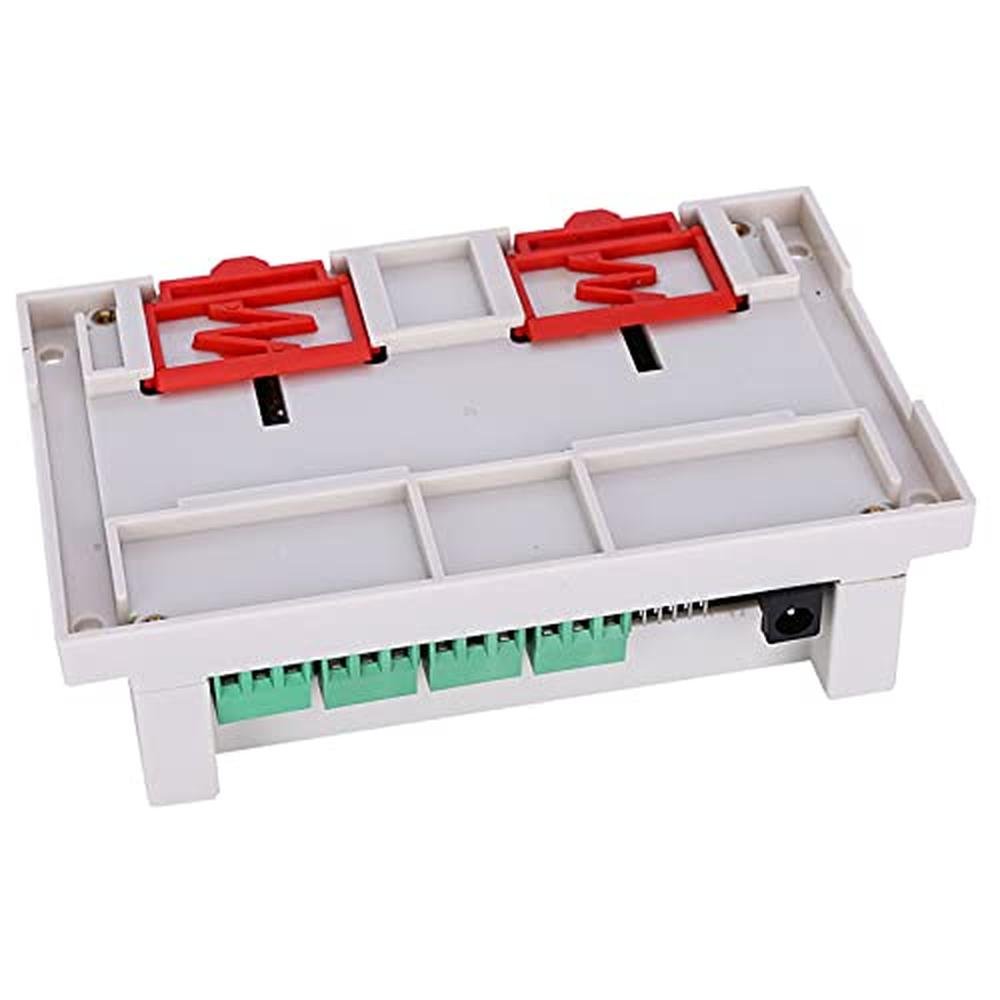

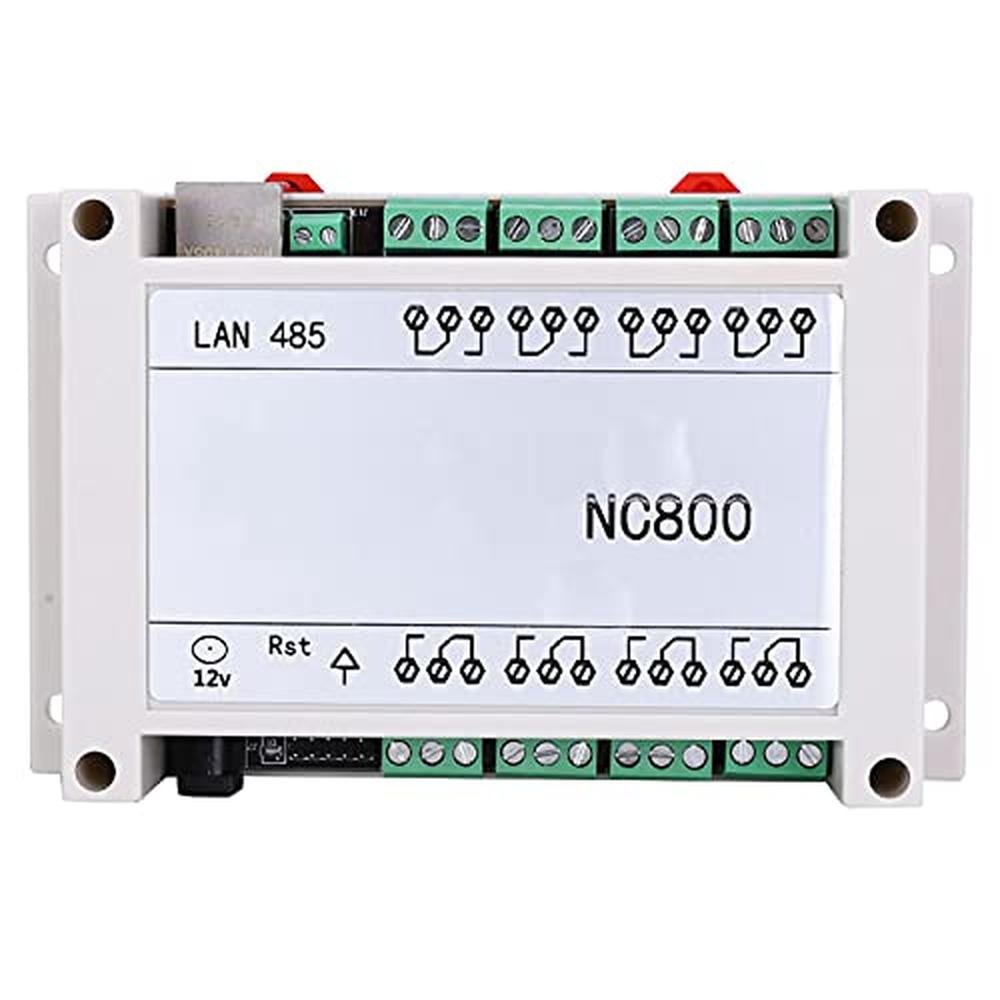

Ethernet RJ45 TCP/IP Relay Remote Control Controller Network Web Server 8 Channels Relay Module Board 250V/AC 10A with Case(White)

Product description

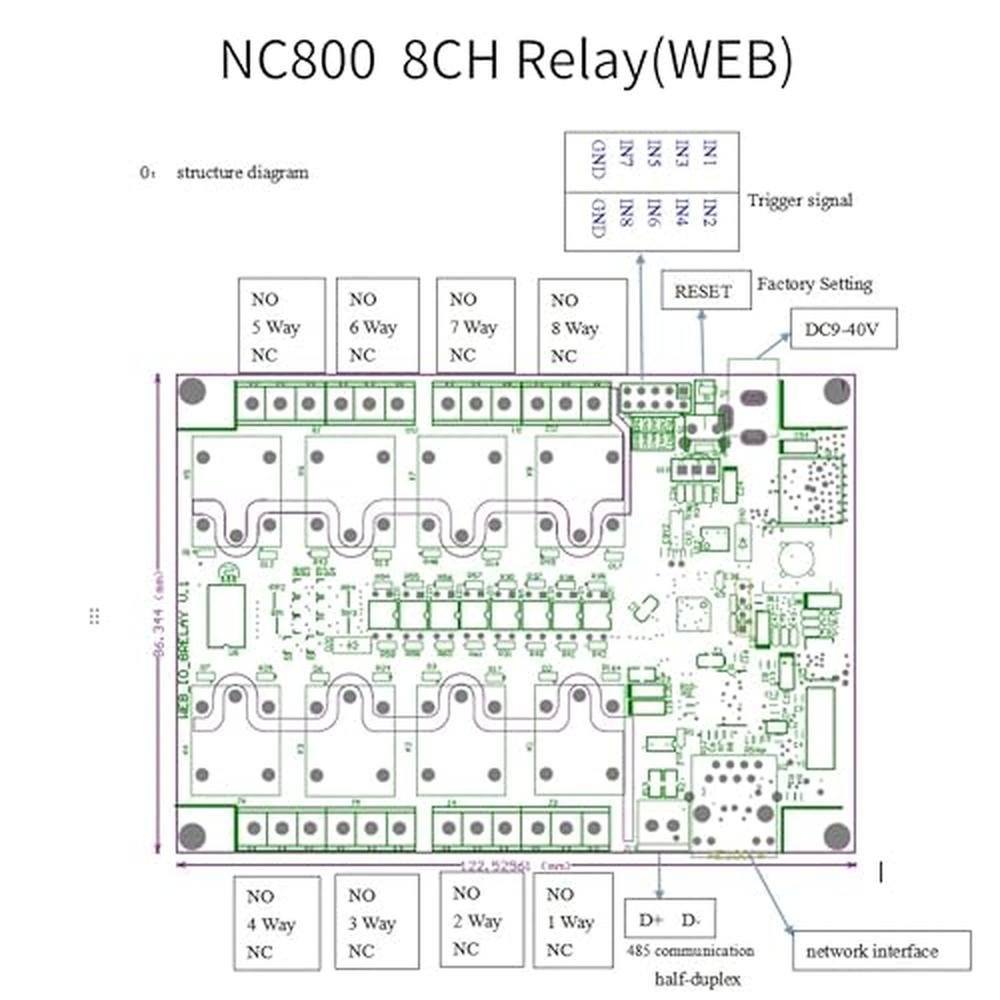

1? trigger signal input
IN1-IN8 has two way s to be inputted?A?Non-contact signal, release after IN ground
B?latch signal? IN ground can control the corresponding relay switch
2? serial port communication protocol
1 way open? FD 02 20 01 01 5D
1 way close? FD 02 20 01 00 5D
2 way open? FD 02 20 02 01 5D
2 way close? FD 02 20 02 00 5D
3 way open? FD 02 20 03 01 5D
3 way close? FD 02 20 03 00 5D?
4 way open? FD 02 20 04 01 5D
4 way close? FD 02 20 04 00 5D
5 way open? FD 02 20 05 01 5D
5 way close? FD 02 20 05 00 5D
6 way open? FD 02 20 06 01 5D
6 way close? FD 02 20 06 00 5D
7 way open? FD 02 20 07 01 5D
7 way close? FD 02 20 07 00 5D
8 way open? FD 02 20 08 01 5D
8 way close? FD 02 20 08 00 5D
1-8 way open? FD 02 20 F8 88 5D
1-8 way close? FD 02 20 F8 80 5D
Back: FB 21 55 xx XX FF : xx XX eac byte means 1ch high byte corresponding to the 16ch, low byte corresponding to 1ch
3? Network controller port
IP: 192.168.1.4
port number? 30000
4 Long press “RESET” till the light is out. Then it will restore the factory default IP and port number.
Features:
Ethernet TCP/IP RJ45 port, IP port can be modified.
WEB server allows accessing and controlling the relay via WEB.
8-Channel 250V/AC 10A relay control individually.
8 external control outputs and active low level can control switch or sensor, etc.
Provide protocol for re-engineering, when connected to router, it allows access control via for Android, Tablet, for Windows system from anywhere in the world with network.
Supports status return, can display current status of the relays
With Reset function, short press to reset, long press to restore factory setting.
Supports 485 networking.
Supports Internal circuit protection, with optocoupler to prevent from external voltage surge.
