- About this Item
- • High Quality Camera: This camera adopts 1/2.3? 12 Megapixel IMX477 sensor for sharp image, max. still resolution 4056 x 3040.
- • Mini Sized HQ Cam: The IMX477 camera has the same size (25*24mm) and mounting holes as the Pi v2, but with better resolution (12 megapixels compared to 8 megapixels) and sensitivity (about 50% more area per pixel for improved low-light performance) than the camera module v2.
- • More Than Ultra HD: Come with an interchangeable M12 lens with a FOV of 75°(H), low distortion, which can capture UHD images while maintaining reality. For more lens kit, you can search for the ASIN:B096V2NP2T to check it out.
- • Wide Compatibility: The IMX477 camera module is not only compatible with Raspberry Pi 5, 1, 2, 3 and 4, but also with Raspberry Pi Zero and Zero 2W, which need a simple configuration according to the manual before use. The package comes with 1 x 150mm/5.9inch 15pin to 22pin FPC cable and 1 x 80mm/3.1inch 22pin camera cable.
Specifications & Details
| SKU | PIB0B1MN721K |
|---|---|
| Brand Name | Arducam |
| Item Weight | 0.018 kgs |
| Package Dimensions | 1.73 x 1.65 x 1.54 inches |
| Color Name | Black, Green |
| Special Features | Low Light |
Product description

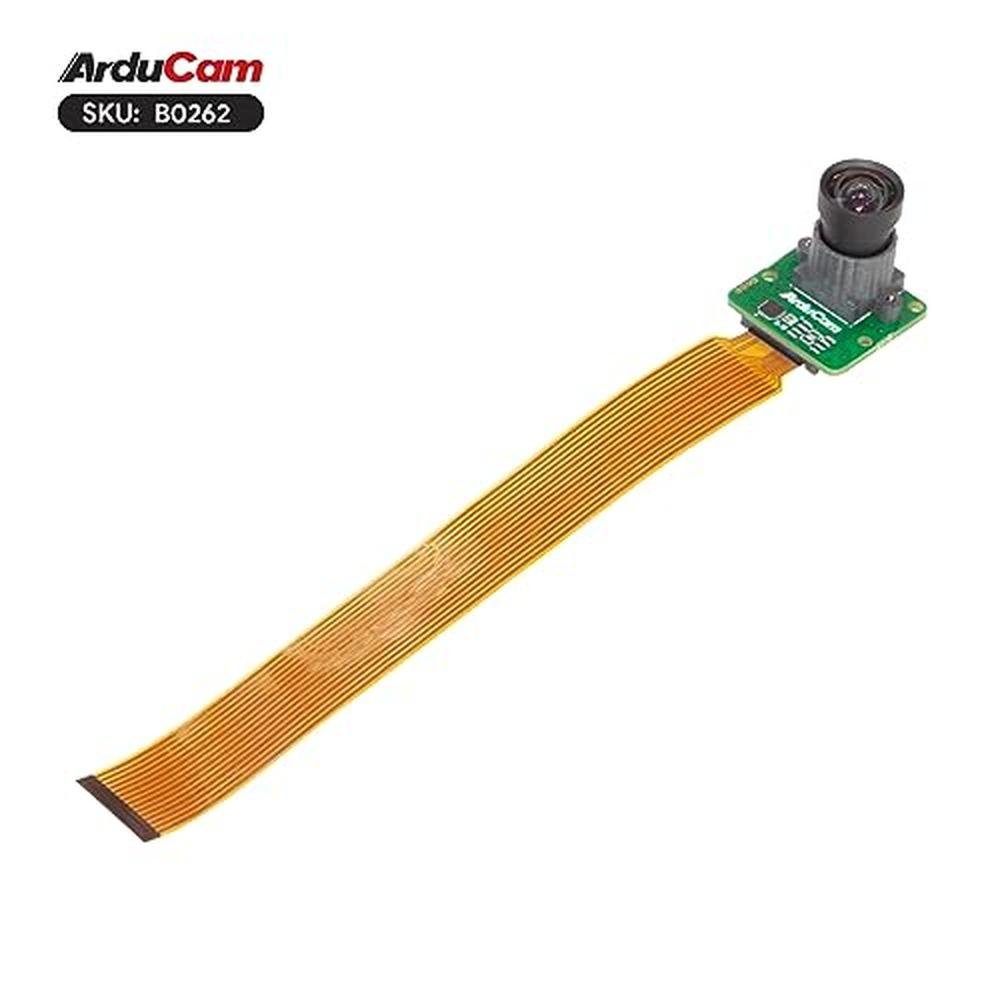

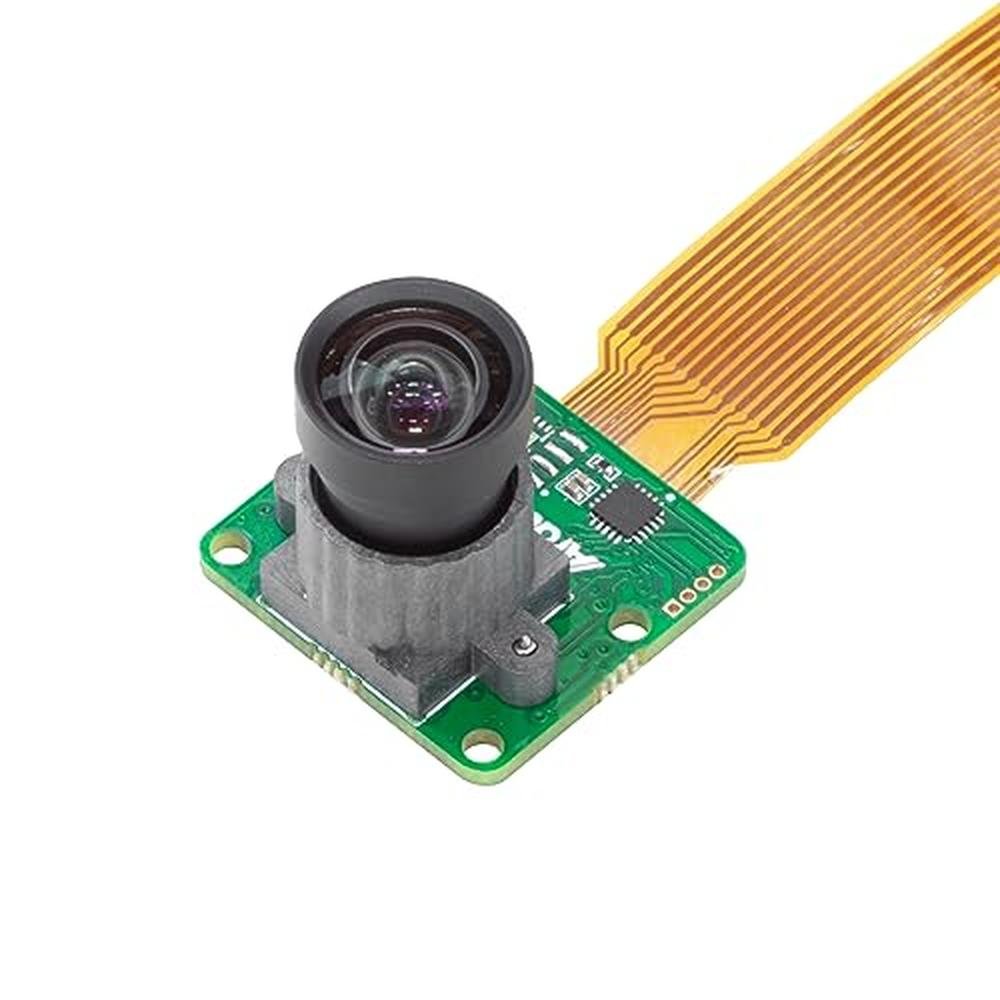

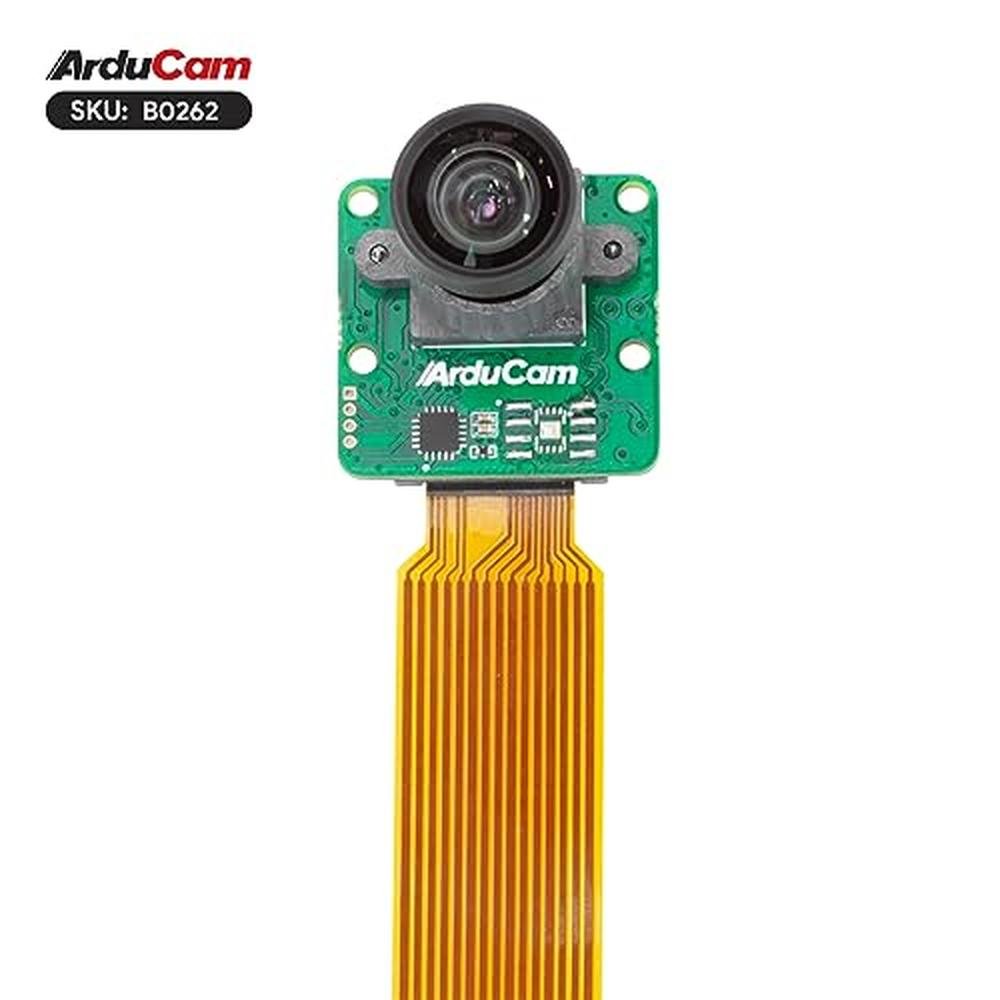

This mini IMX477 camera has a higher resolution, which is up to 12MP, but the size and weight are limited. It enjoys the same size as the official IMX219 camera board and mounted a low distortion M12 lens.

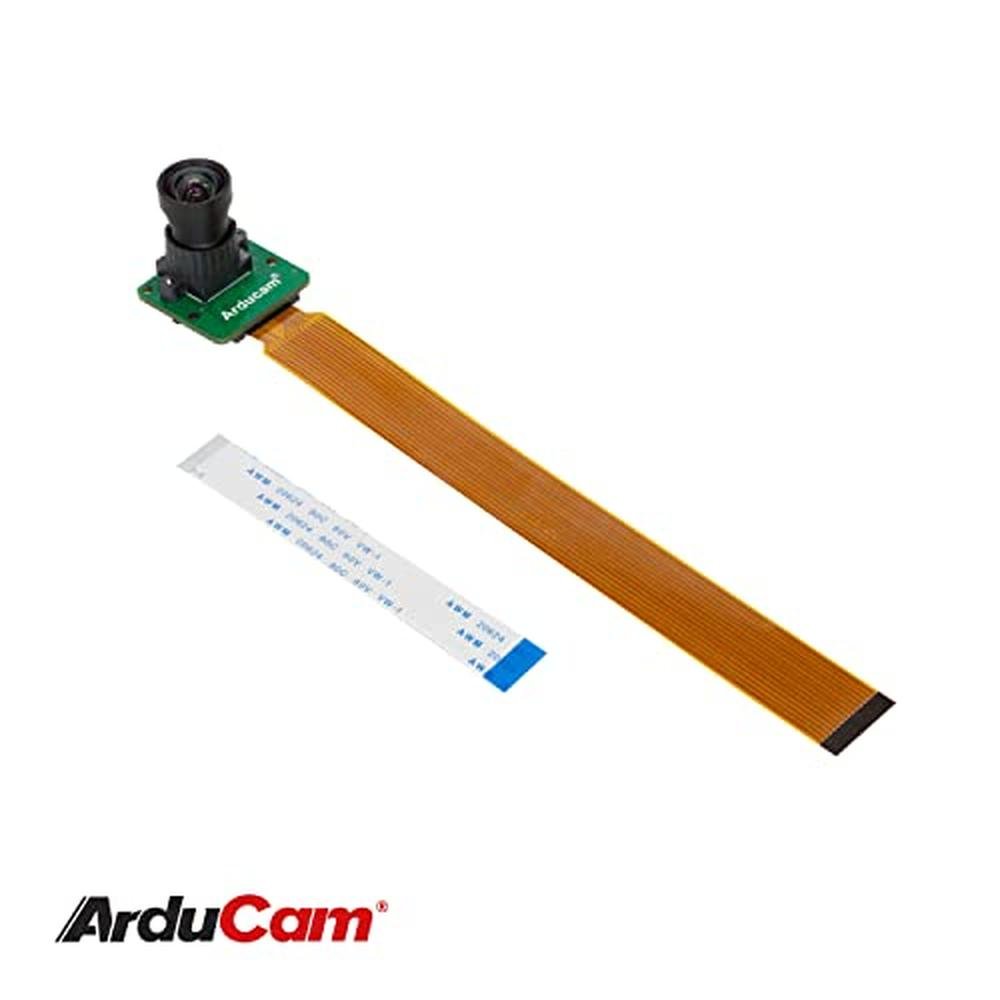

Package includes:
1 pcs 12.3MP IMX477 color camera module with M12 mount lens
1 x 150mm/5.9inch 15pin to 22pin FPC cable
1 x 80mm/3.1inch 22pin camera cable
Note:
This is an IMX477 camera designed by Arducam, please use the libcamera stack. You need to modify the config.txt file and add configuration lines according to the camera type before using it.
sudo nano /boot/config.txt
add the line: dtoverlay=imx477
To override the automatic camera detection, Bullseye users will also need to delete the entry or change it to value 0.
camera_auto_detect=1
update: camera_auto_detect=0
For Pi0-3 bullseye users, you also need to enable glamor acceleration:
sudo raspi-config
Navigate to Advanced options?Glamor?enabled
SPECS
Size 25x24x23mm
Still resolution 12.3 Megapixels
Video modes 2028 × 1080p50, 2028 × 1520p40 and 1332 × 990p120
Linux integration V4L2 driver available
Sensor IMX477
Sensor resolution 4056 x 3040 pixels
Sensor image area 6.287mm x 4.712 mm (7.9mm diagonal)
Pixel size 1.55 ?m x 1.55 ?m
IR Sensitivity Visible light
Interface 2-lane MIPI CSI-2
Hole Pitch Compatible with 12mm, 20mm
Focal length 3.9mm
FOV 75° (H)
Mount M12 Mount
