- About this Item

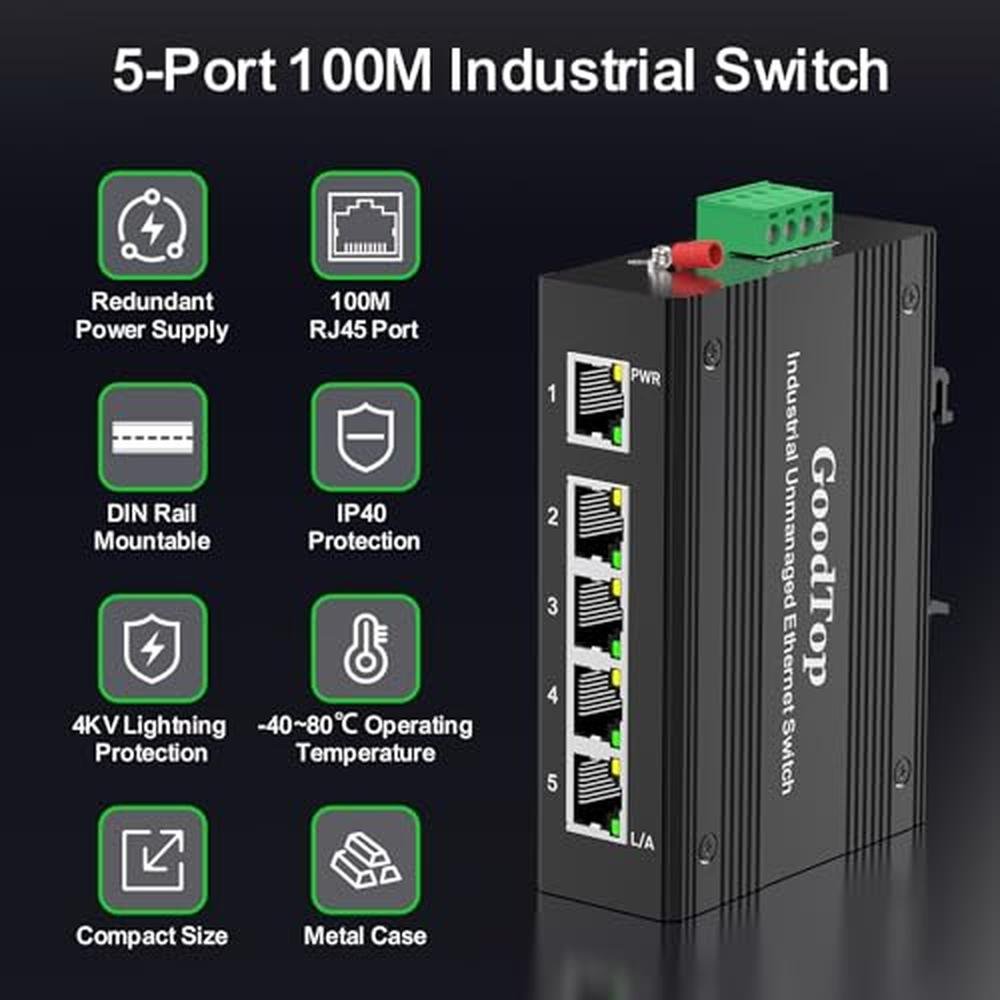

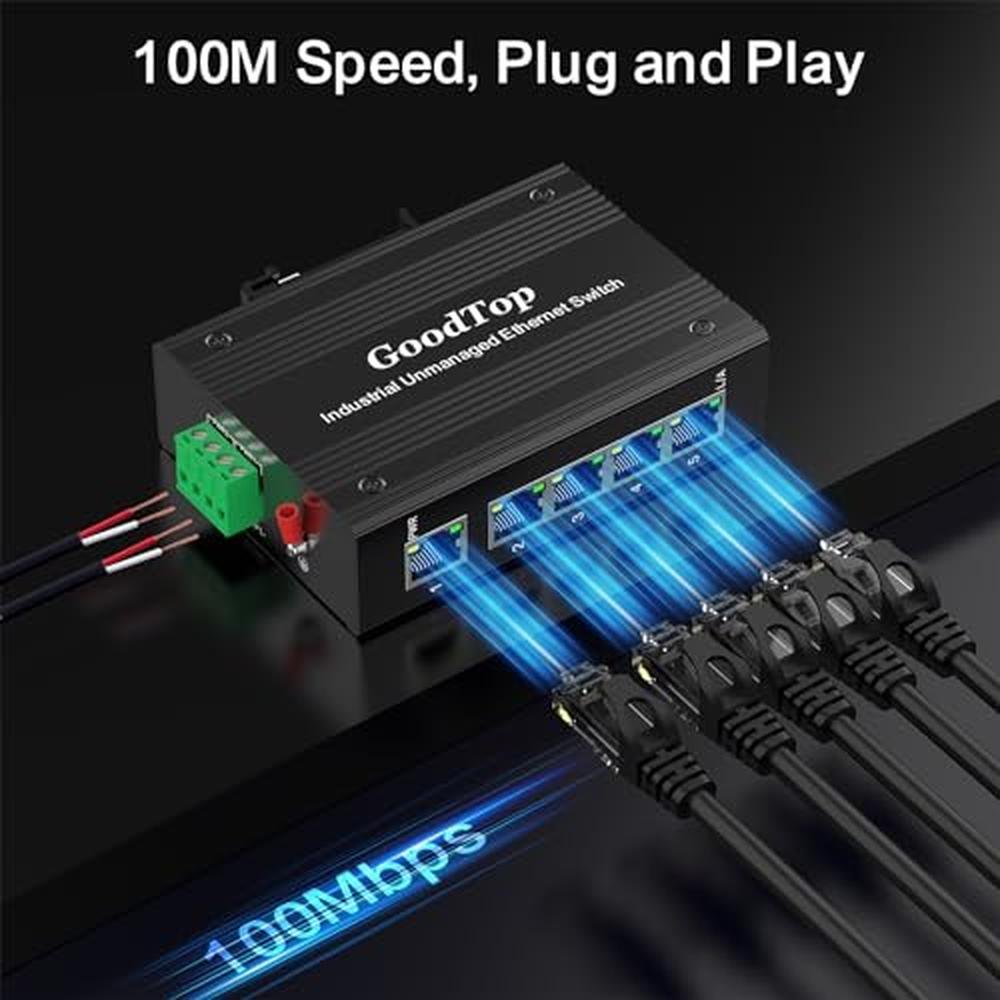

- • 100Mb Fast Industrial SwitchEquipped with 5 x 10100Mbps RJ45 ports.1Gbps switching capacity.Fullhalf duplex MDIMDI-X adaptive.IP40 protection and 4KV lightning protection.It can work at a wide range temperature -40C 80C.

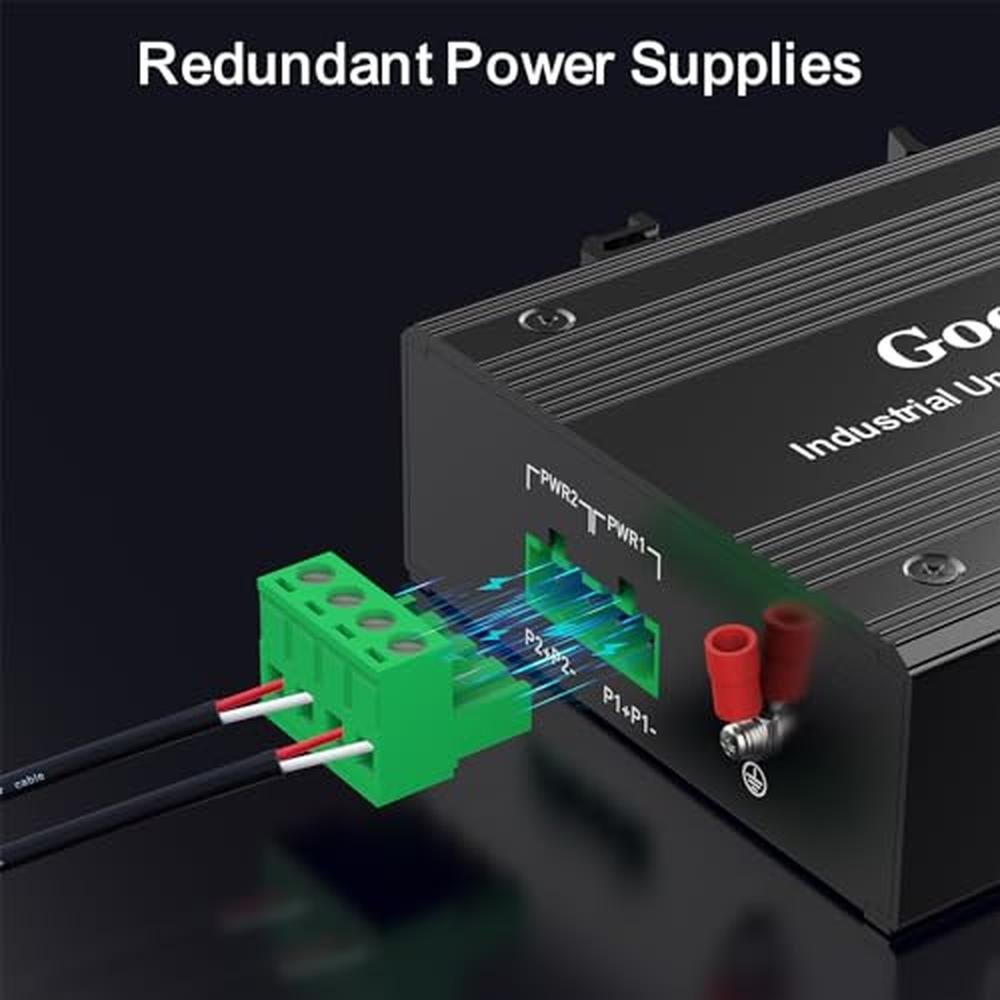

- • Industrial Power SupplyThe switch is equipped with 15W single output power supply.Support DIN-Rail mounting,90V260V AC input.Working temperature -2050.Contain short-circuitovervoltageoverload protection.

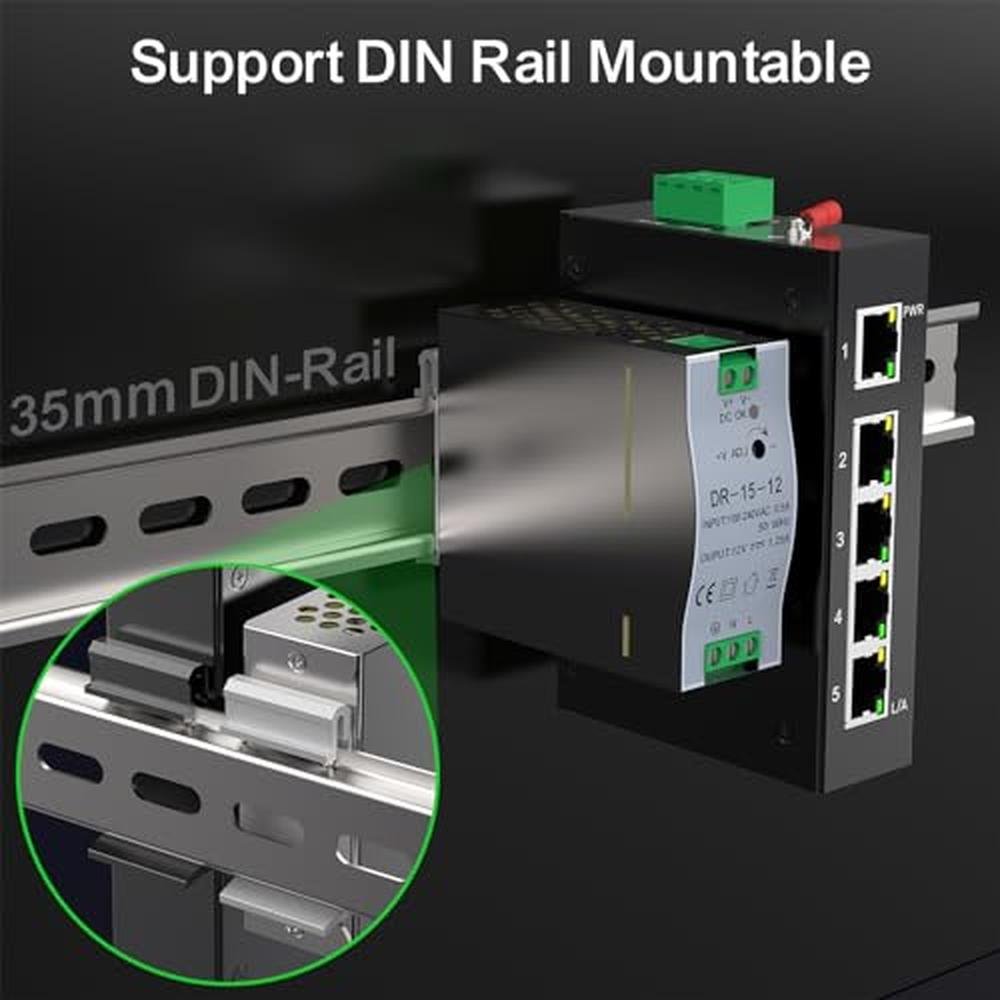

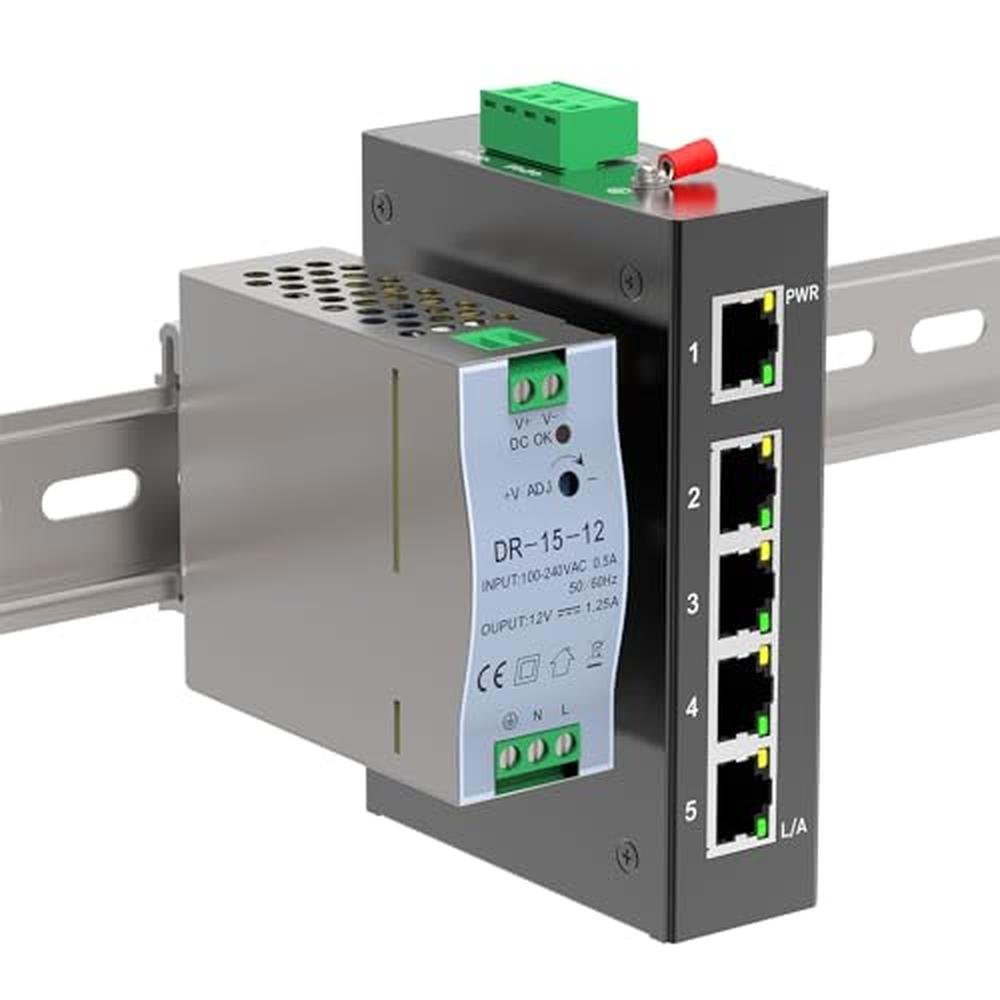

- • Aluminum AlloyThe shell of this switch is made of industrial grade aluminium alloy which provides greater robustness,better heat dissipation. Supports 35mm DIN Rail mounting,installation and disassembly are very simple.
- • Switch PerformanceNetwork standard of switch is IEEE802.3,IEEE802.3u,IEEE802.3x.Packet Forwarding rate is 0.744Mpps,and 1K MAC Address.Forwarding Mode is Storage and Forward. Support flow control.
Specifications & Details
| SKU | PIB0CRY96QP7 |
|---|---|
| Voltage | 2.6E+2 Volts (AC) |
| Case Material | Aluminum |
| Maximum Power | 3 Watts |
| Upper Temperature Rating | 8E+1 Degrees Celsius |
| Interface Type | RJ45 |
| Data Transfer Rate | 100 Megabytes Per Second |
| Manufacturer | Shenzhen GuangyangTianji Communication Technology Co., Ltd. |
| Package Dimensions | 8.19 x 6.65 x 2.05 inches |
| Item Weight | 0.422 kgs |
| Item model number | 5 Port 100M |
