Paint Thickness Gauge | Digital Meter for Automotive Coating Thickness Gauge Tester | High Contrast Backlight LCD | Resolution 2mils | Auto Power Off | Auto Digital Calibration Data Hold Mini Size

Rs. 4,139.00
Rs. 4,139.00
Rs. 6,459.00
Sold out
Tax included. Free shipping
Brand: Reenwee
SKU: PIB08CRGMDSG
Delivery: 15 Days

About this item

  • Automatic calibration, data hold. Mini size with LCD display.
  • Two units Available: mm/mil.
  • Mainly used to non-destructively measure the paint thickness of car.
  • High Contrast Backlight LCD

Product description


Digital Thickness Gauge

This model is mainly used for checking the car is repainted or not. Not for high accuracy thickness checking. If you need higher resolution gauge, please check our other model Reenwee YNB555

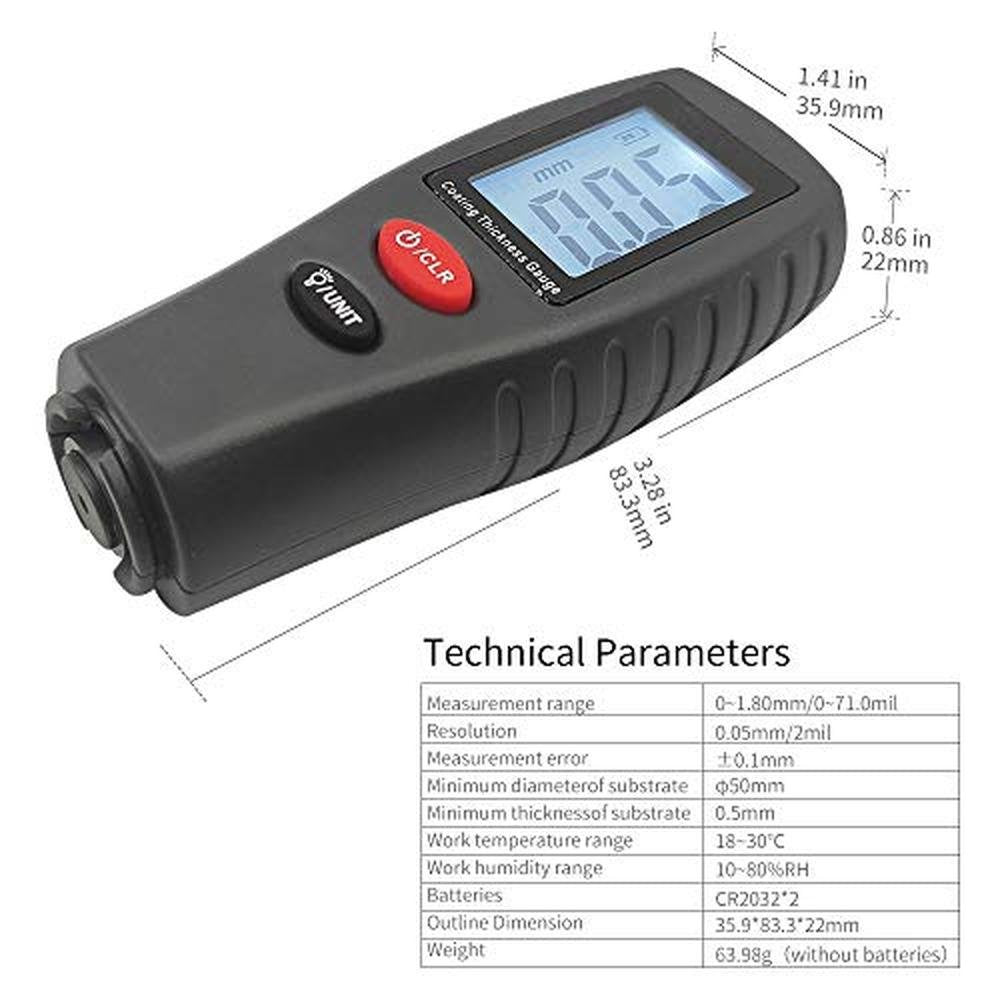

Specification:

Measurement range 0~1.80mm/0~71.0mil
Resolution 0.05mm/2mil
Measurement error ±0.1mm
Minimum diameter of substrate φ50mm
Minimum thickness of substrate 0.5mm
Work temperature range 18~30℃
Work humidity range 10~80%RH
Battery CR2032*2
Outline Dimension 35.9*83.3*22mm
Weight 63.98g（without batteries）

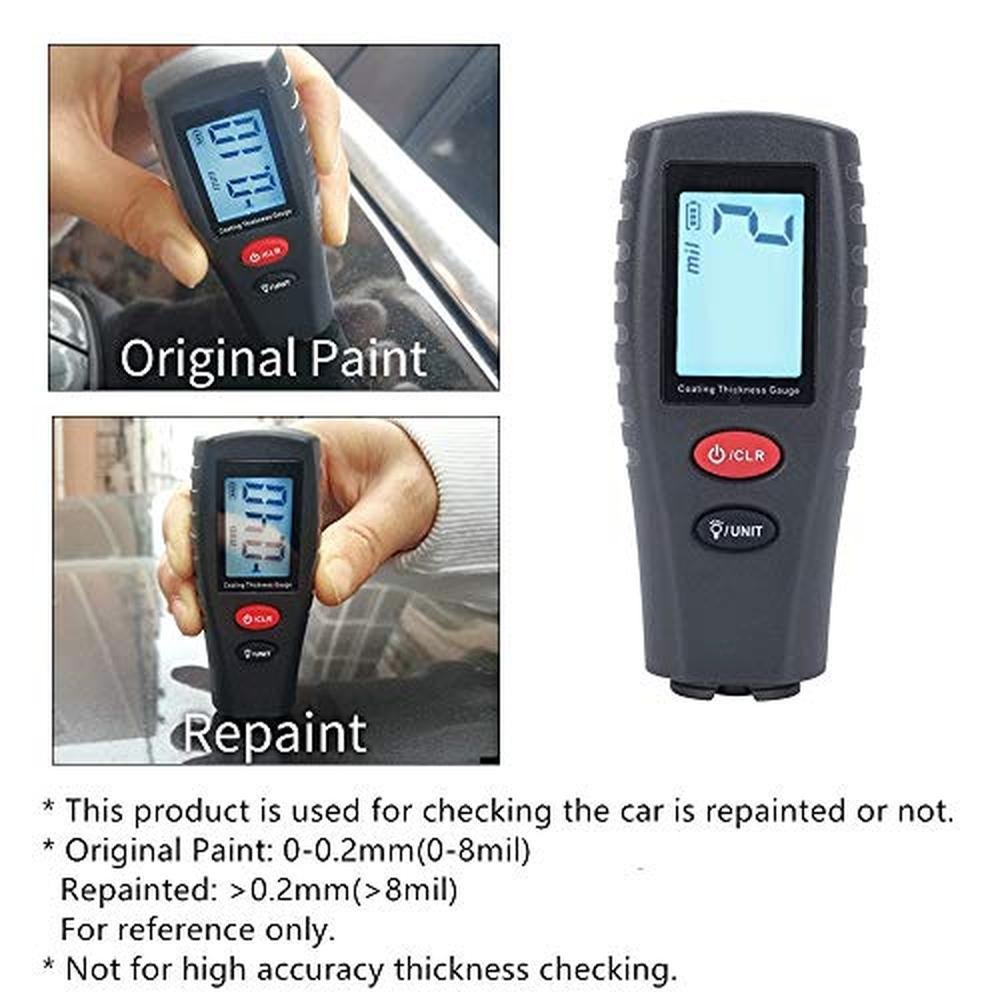

Original Paint

Repaint

Over Range

Original Paint

In most cases, when the result is less than 0.2mm(8mil), it's original painting.

Repaint

In most cases, when the result is over 0.2mm(8mil), it's repainted.

Over Range

When the result is over 1.8mm(71mil), it shows OL, which means over range.

Technical specifications

SKU PIB08CRGMDSG
Brand Name Reenwee
Part Number YNB-100
UPC 613464784227
Manufacturer Reenwee
Model YNB-100
