InnoMaker Raspberry Pi HIFI DAC HAT PCM5122 HIFI DAC Audio Card Expansion Board for Raspberry Pi 5 4 3 B+ Pi Zero etc. (DAC HAT)

Product description

Maybe the Best Optimized DAC Hat for RPI Audio Output
The Innomaker HiFi DAC Hat maybe the best optimized partner for Raspberry Pi audio output. Used on-board PCM5122 as the IIS clock master, instead of the clocks from RPI which comes with too much jitter. Added dual low jitter oscillators(45.158M and 49.152M) to support more exact sample rate clocks.
TI PCM5122 32bit/384KHz
DAC SNR 112Db.
DAC THD+N @ -1 dBFS -78dB.
Full Scale Output 2.1Vrms.
Dynamic Range 112dB.
Sampling Frequency ranges from 8kHz to 384kHz.
TPA6130A2 Amplifier
Integrated EEPROM for automatic configuration(Option).
Automatically switching frequencies according to the input I2S signals.
40-Pin Connector
Compatible with Raspberry Pi 4, Zero, Zero W, 3B, 3B+, A+, A with the 40-pin connector.
WIMA Capacitance
German WIMA professional-level film capacitance
RCA Output
Gold Plated RCA output connector
3.5mm Audio Jack
High-quality 3.5mm stereo audio jack. With 138mw headphone Amplifier can directly drive headphone.
High Precision Oscillators
45.1584M and 49.152M two hight precision oscillators
Compact Size

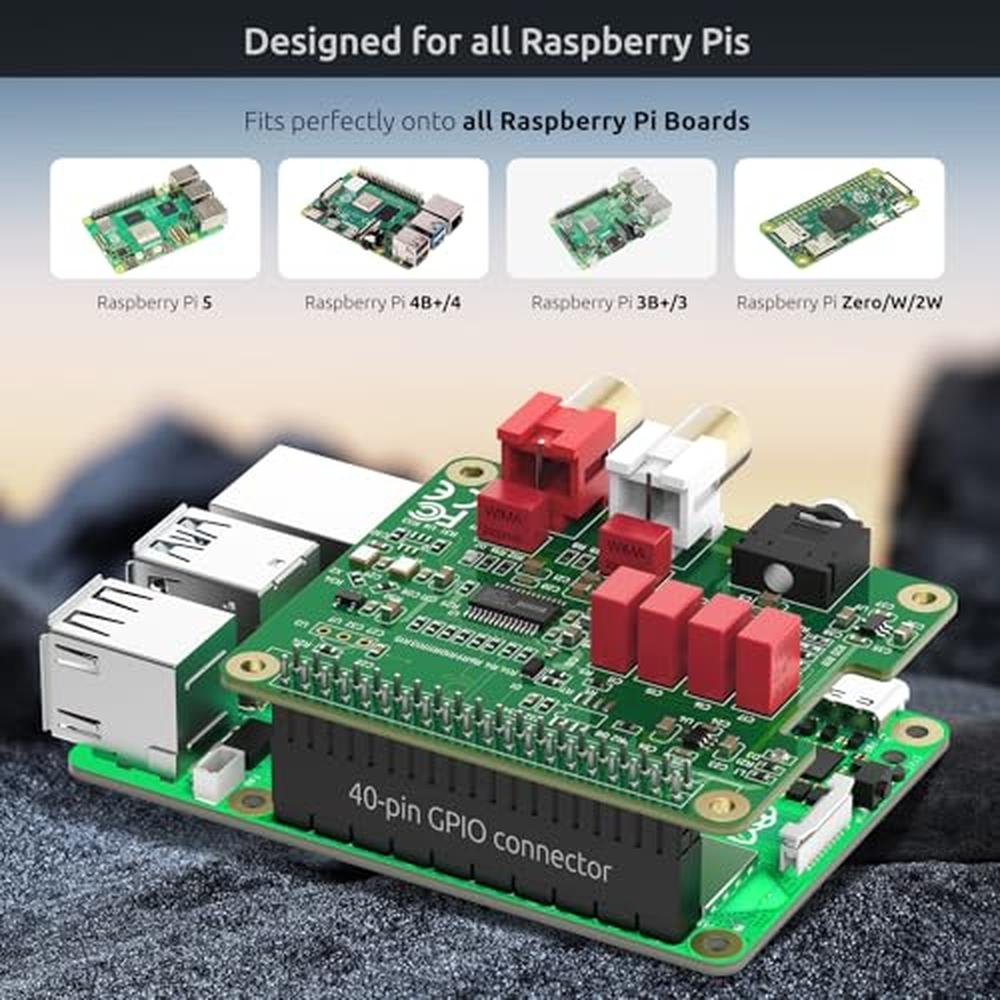

Board Size 65x56mm, fit for Raspberry Pi 5, 4, Zero, Zero W, 3B, 3B+

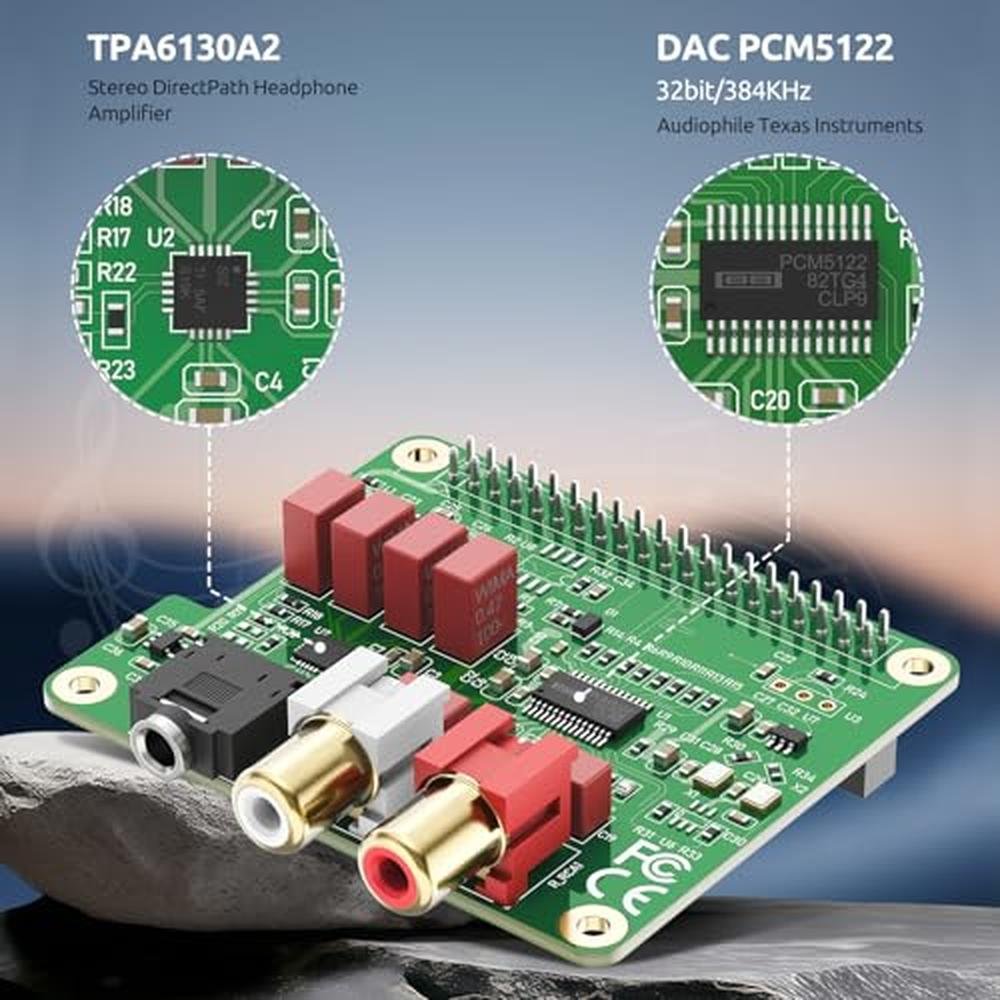

DAC Chipset High-quality DAC TI PCM5122 for best sound quality
Sample Rates up to 384-KHz/32-Bit
Audio output connectors 2x RCA (LEFT &Right) &3.5mm head phone Jack
DAC SNR 112Db
Full Scale Output 2.1Vrms
DAC THD+N -1 dBFS -78dB
Dynamic Range 112dB
Sampling Frequency ranges 8kHz to 384kHz
Ultra-low noise Ultra-low noise voltage regulators for optimal audio performance
EEPROM Integrated EEPROM for automatic configuration(Option).
I2S Automatically switching frequencies according to the input I2S signals
Dual oscillators Dual low jitter crystal oscillators for Master Clock generation
Remote control Infrared remote control connector (using GPIO26)
