Geekworm KVM-A8 PCIe Version for Raspberry Pi 4 Model B KVM Over IP Support KVM V3 PoE ATX HDMI CSI (Unassembled and Not Include Raspberry Pi 4)

Product description

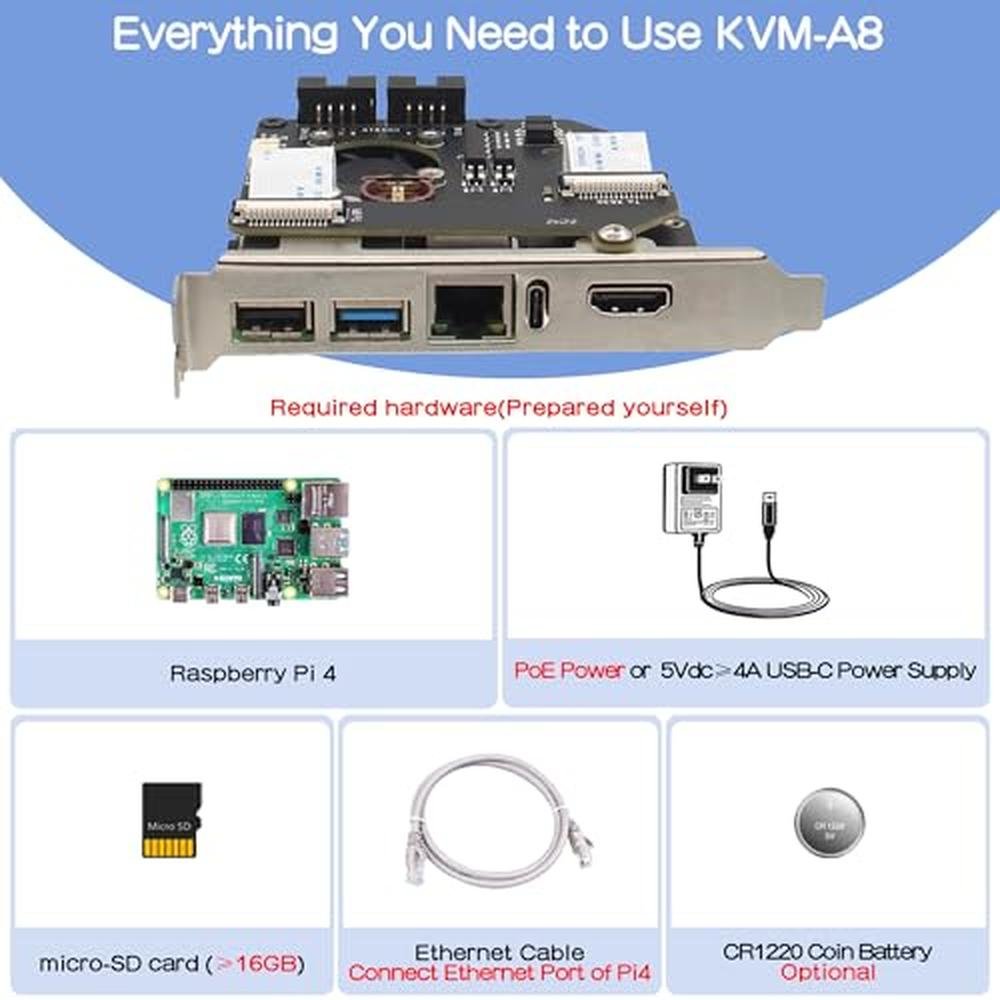

Note:
The Raspberry Pi 4 board, TF Card, Power Adapter is not included in the packing list,need to prepare by yourself!
The KVM-A8 kit is unassembled and requires users to refer to the instruction manual and video to assemble it by themselves?
The X630-A1 plate has no use for the KVM-A8 installation, don't need to use X630-A1.
Overview
Raspberry Pi-based KVM is a very powerful and Open Source Software which allows for a remote connection via your Raspberry Pi to turn on/off or restart your computer, configure the UEFI/BIOS, and even reinstall the OS using the Virtual CD-ROM or Flash Drive. You can use your remote keyboard and mouse or KVM can simulate a keyboard, mouse, and a monitor, which are then presented in a web browser as if you were working on a remote system directly. It's true hardware-level access with no dependency on any remote ports, protocols or services!

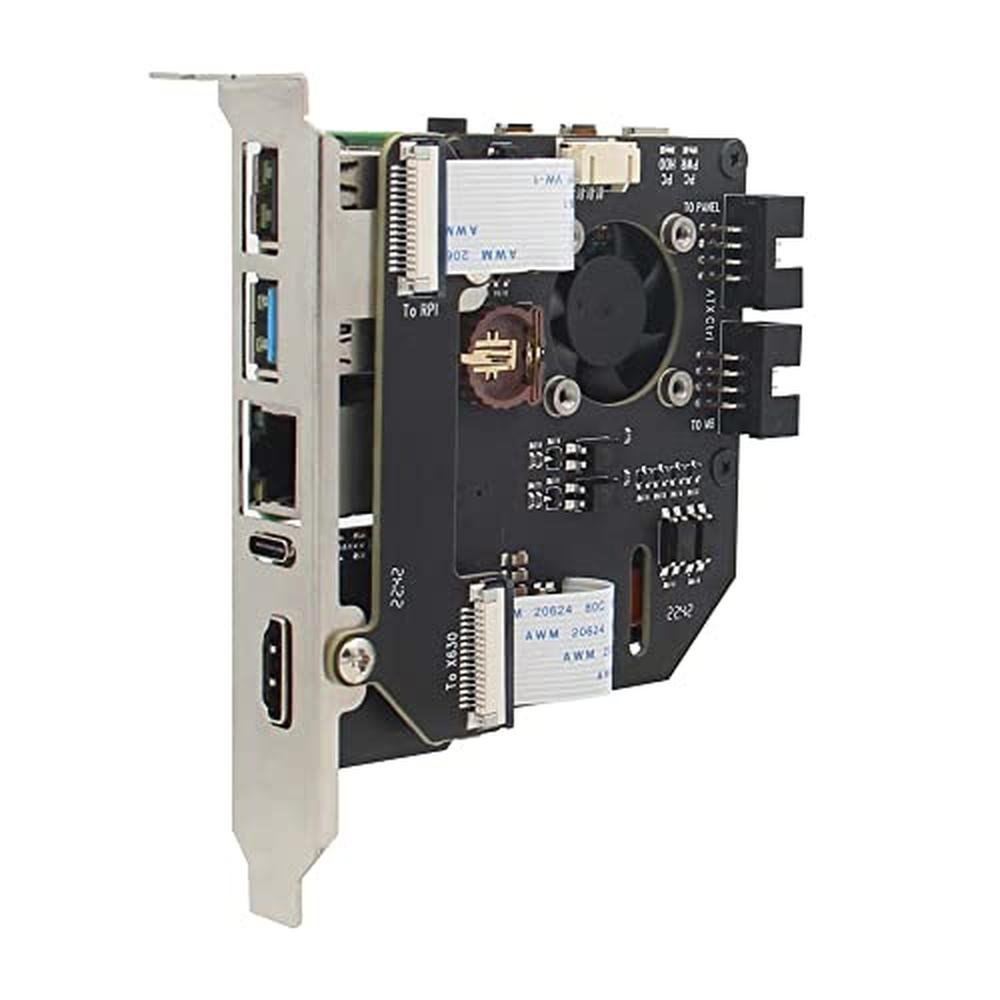

This is the KVM-A8 PCIe version kit that allows user to realize a KVM project with Raspberry Pi 4. It is directly inserted into the computer case as a PCI card and does not require additional cables and is very convenient to use. That is, you can put a computer into your computer.
The KVM-A8 is composed of follow parts:
X630 HDMI to CSI-2 Module (for video capture)
X630-A8 V1.7 Expansion Board (for POE, RTC, ATX Control power in etc)
User Manual: Pls refer to Geekworm WiKi and search KVM-A8.

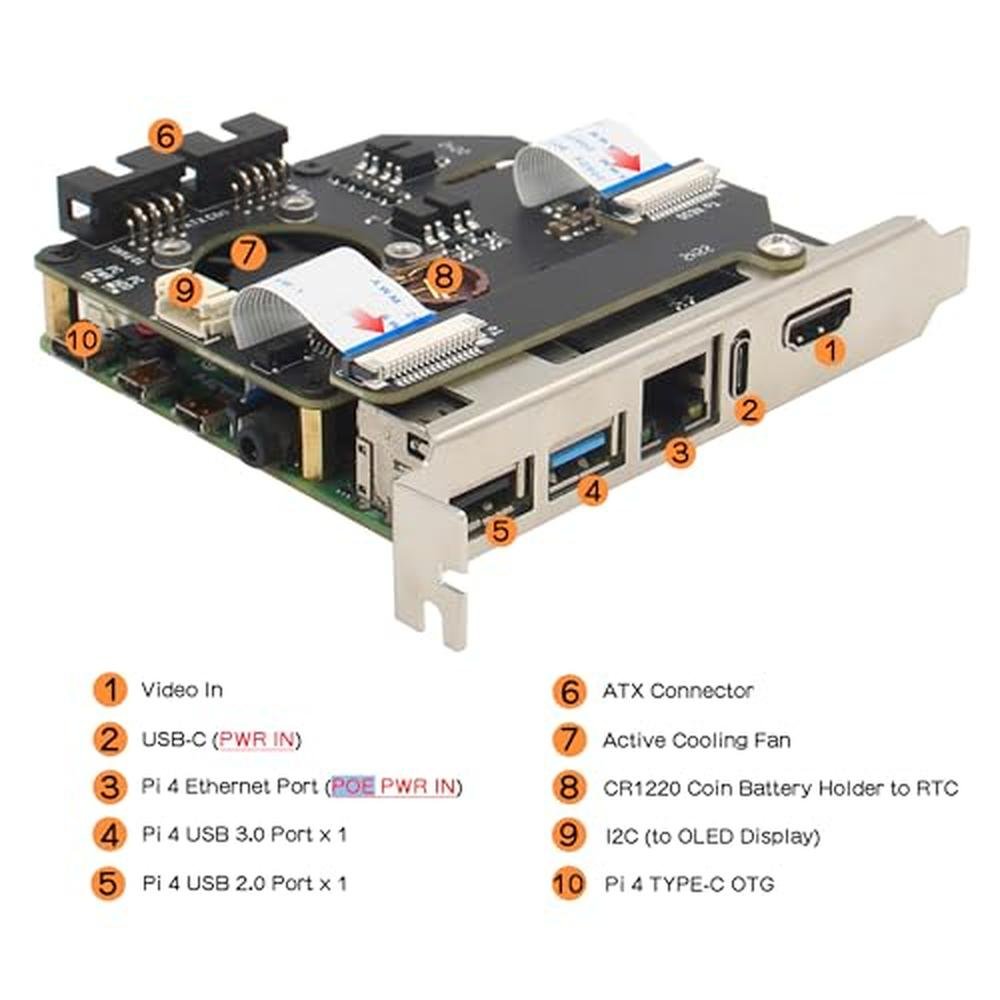

Features
Designed especially for Raspberry Pi 4 Model B ( Raspberry Pi 4-based KVM over IP)
Installs justs like any PCI card into a tower / desktop PC
Compatible with the latest Raspberry Pi 4 Model B 1GB/2GB/4GB/8GB(Not support Raspberry Pi 3)
Fully compatiblie with PiKVM V3 Platform OS(Not support PiKVM V4 Plus & V4 Mini platform)
Reliable remote network access to servers and computers
HDMI Full HD capture based on the TC358743 chip ?from X630)
OTG Keyboard & mouse; Mass Storage Drive emulation
Hardware Real Time Clock (RTC) with CR1220 coin battery socket
Equipped with cooling fan on X630-A8 for heat dissipation of Raspberry Pi 4
Equipped with photocoupler to protect RPi GPIO pins from computer and ESD spikes
PoE Supported – Power over Ethernet for simplified installation, also supports for powering via USB-C of X630-A8
Designed to use a single Ethernet cable for both data and power transmission ?POE)
Reserves the PH2.0-4P connector for I2C OLED display
Note about the OLED:
We have considered for a long time whether to put the OLED in the KVM-A8 kit, the OLED screen has no fixed installation position users need to find a way to mount the OLED himself, we are worry about this will lead to return, but we finally still decided to put the OLED screen in the packing list in consideration of some users will need to use the OLED screen. Please take this into consideration before make a decision.
The OLED is only used to display some information you need, you can also not use OLED!!!

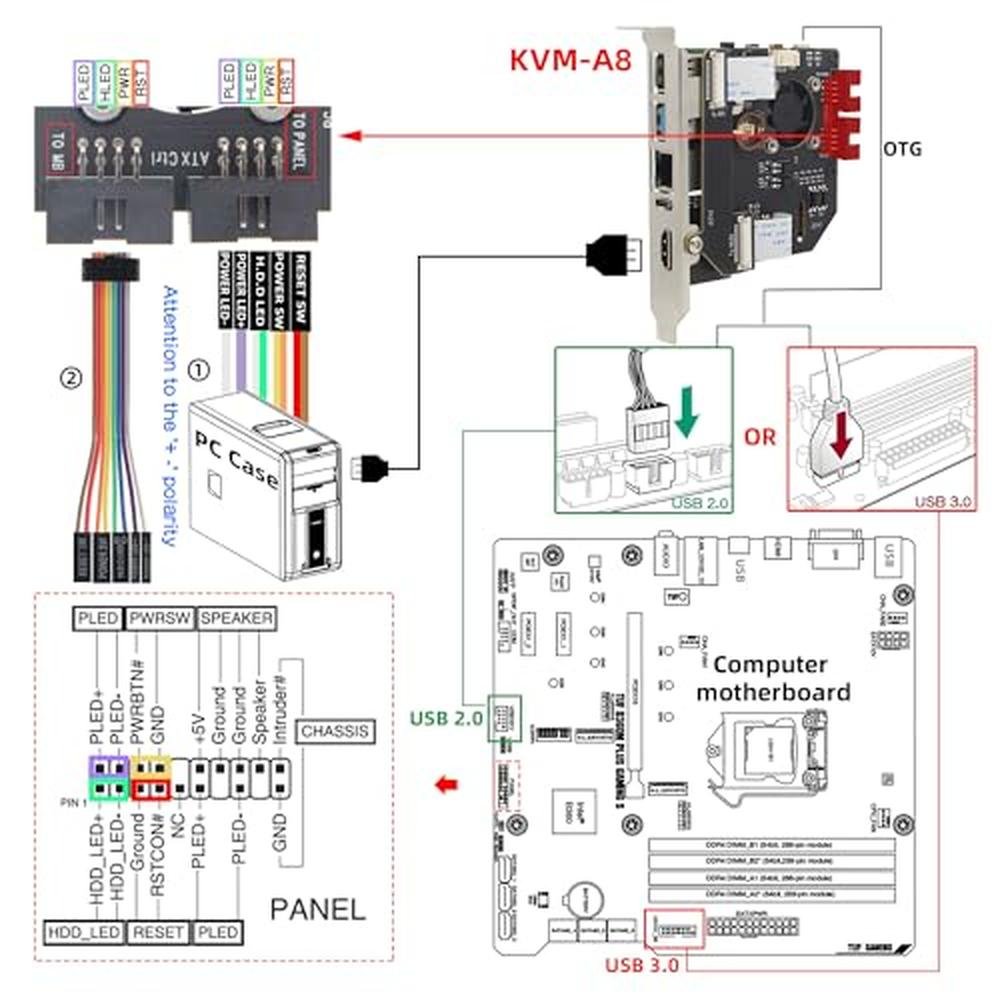

Wiring Diagram

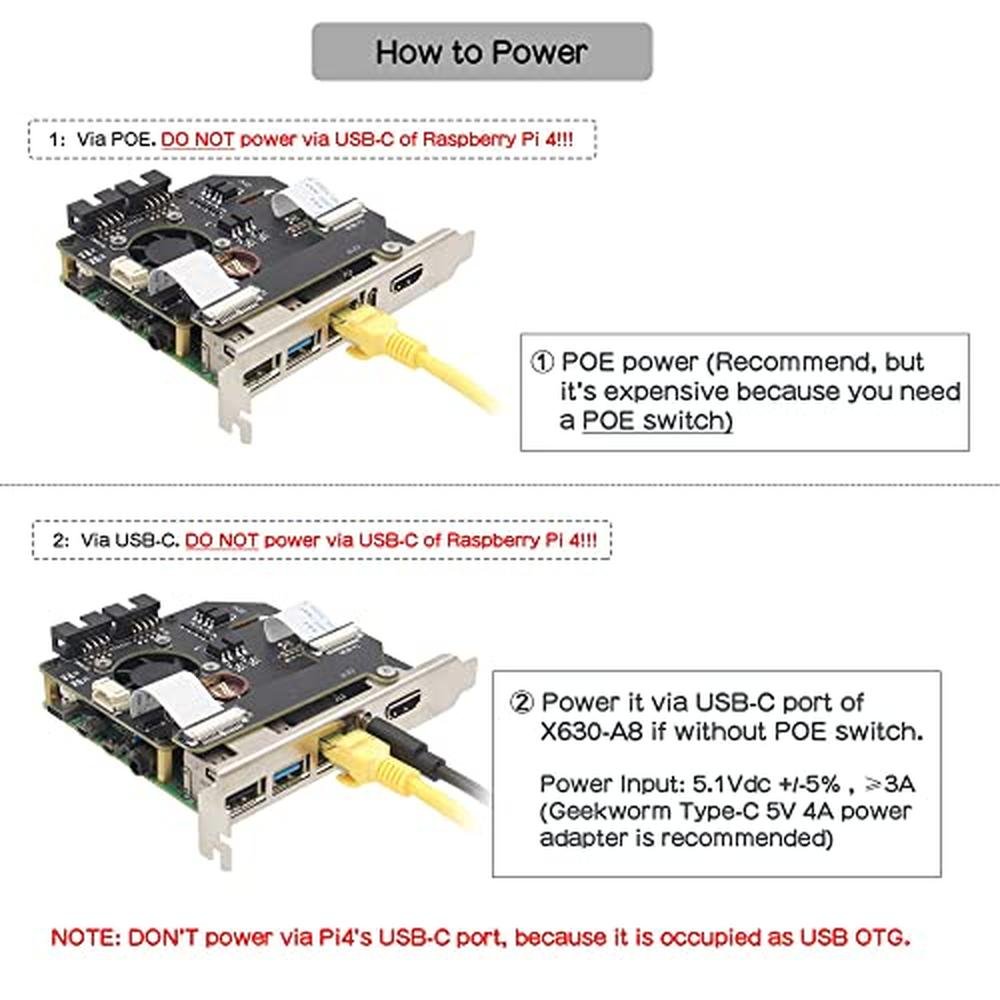

How to Power:
PoE Supported – Power over Ethernet for simplified installation
Also support to power via USB-C port of X630-A8(Recommend to use Geekworm Type-C 5V 4A power adapter[B09J856PND])
Packing List:
1 x X630 HDMI to CSI-2 Module with Accessories
1 x X630-A8 V1.7 Expansion Board
1x X630-A8-CAB V1.1 Camera Adapter board
1 x ATX Control Cable(52cm Length)
1 x Motherboard Internal USB 2.0 9-pin Female header to TYPE-C USB OTG cable(50cm Length)
1 x USB3.0 IDC to TYPE-C USB OTG Cable (45cm Length)
1 x Standard height PCIe Add-in Card I/O Bracket
1 x HDMI Cable(30cm length)
KVM-A3
KVM-A4 V2.0
KVM-A8
X650
Buying Options
Buying Options
Buying Options
Buying Options
Customer Reviews
92
6
88
8
For Use With Raspberry Pi 4 Model B Only Raspberry Pi Zero 2W Only Raspberry Pi 4 Model B Only Raspberry Pi Compute Module 4(CM4)
With Case Yes No No, put into the PC directly No, put into the PC directly
Work with X630 Yes Yes Yes No
