ELECROW 7 Inch Touch Screen Monitor for Raspberry Pi Screen 1024x600 IPS LCD Mini Monitor for Raspberry Pi 5 4 3 400 Windows 11/10/8/7 Driver Free

Product description

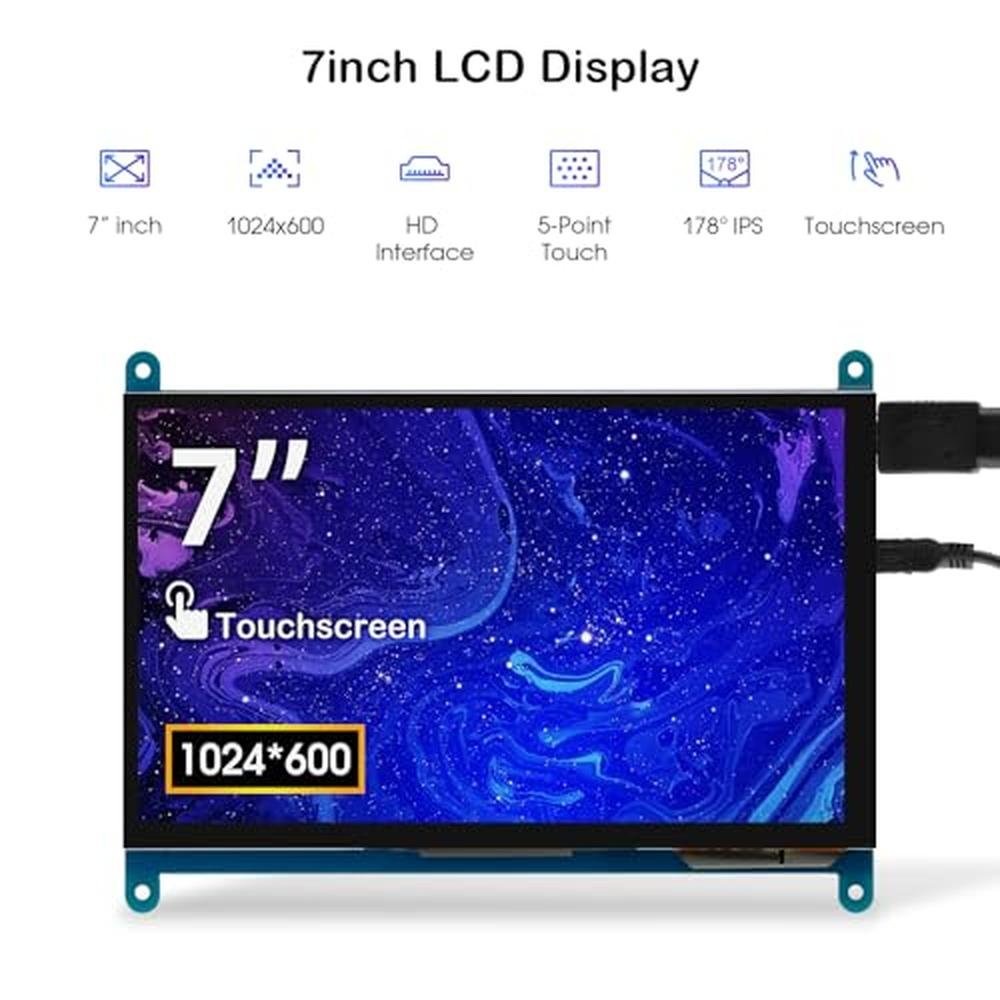

ELECROW 7 Inch Touchscreen Display
This 7 inch small LCD supports high resolution of 1024x600 and capacitive touch screen.
It upgrades to IPS screen with larger visible angle and more clear display effect.
It supports manual backlight control, backlight switch can be turn off to lower power consumption.
With capacitive touch control, plug and play, no driver needed.
Wide Application
When works with Raspberry Pi, supports Raspbian, Ubuntu, Kodi, Win10 IOT, single touch, free driver.
When work as a computer monitor, supports Windows 11/10/8/7, plug & play, 5 point touch, free driver.
When work as a general purpose HDMI-compatible monitor, touch function NOT available. Supports popular game consoles, compatible with XBOX, PS, Switch etc, plug & play, no touch.
Note: it's recommended to use 5V3A or above power supply to ensure enough power.
When intended for Raspberry Pi 4, for the system after 2021-10-30, for example on Bullseye, please modify "dtoverlay = vc4-kms-v3d" to "dtoverlay = vc4-fkms-v3d" in the config file, otherwise it may fail to start. But on Buster, please comment out "dtoverlay = vc4-fkms-V3D" by adding #.

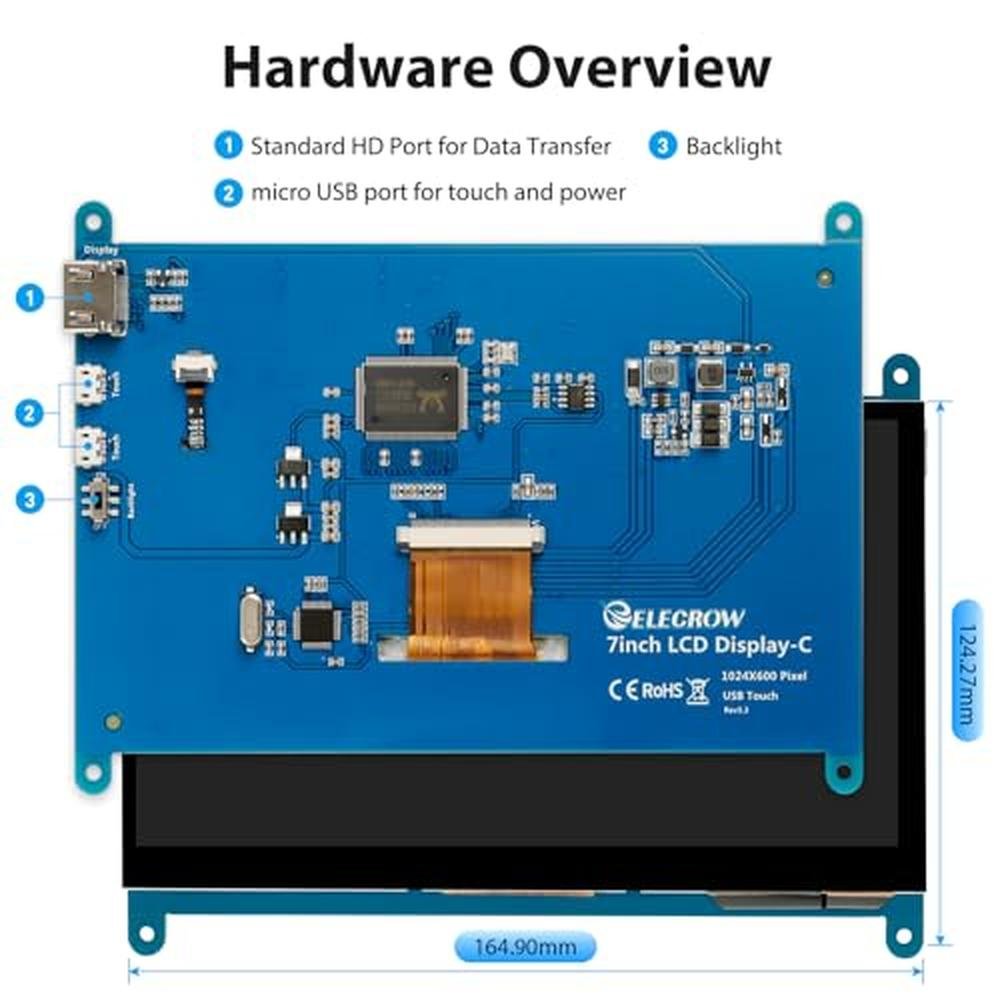

Hareware Description
HD interface: For connecting motherboard and LCD monitor for displaying.
Touch interface: For power supply and touch output, 2 same ports designed to prevent insufficient power supply when needs extra power.
Backlight switch: Controls the backlight turned on and off to save power.
Connected to RPI 4
Please connect to HDMI-0 port when intended for Raspberry Pi 4.
* When connecting to RPi 4, please power the screen with an external power supply, and then disconnect the external power after booting up the Pi to ensure that the touch function works properly.
Touch Function
To achieve display and touch at the same time, please use a USB data cable to connect the screen and the USB port of the main control device.
*The touch function can be used normally only if the screen is powered directly through the usb of the device. If the monitor is connected to an external power supply at the same time, the touch function is not available.
Package List
7 Inch Touchscreen x1
HD cable x1
USB cable x1
Micro HD adapter x1
Copper screws pack (4pcs) x1
DVDx1
Specifications
Size: 7.0 (inch)
Resolution: 1024 × 600 (dots)
Screen Panel: IPS

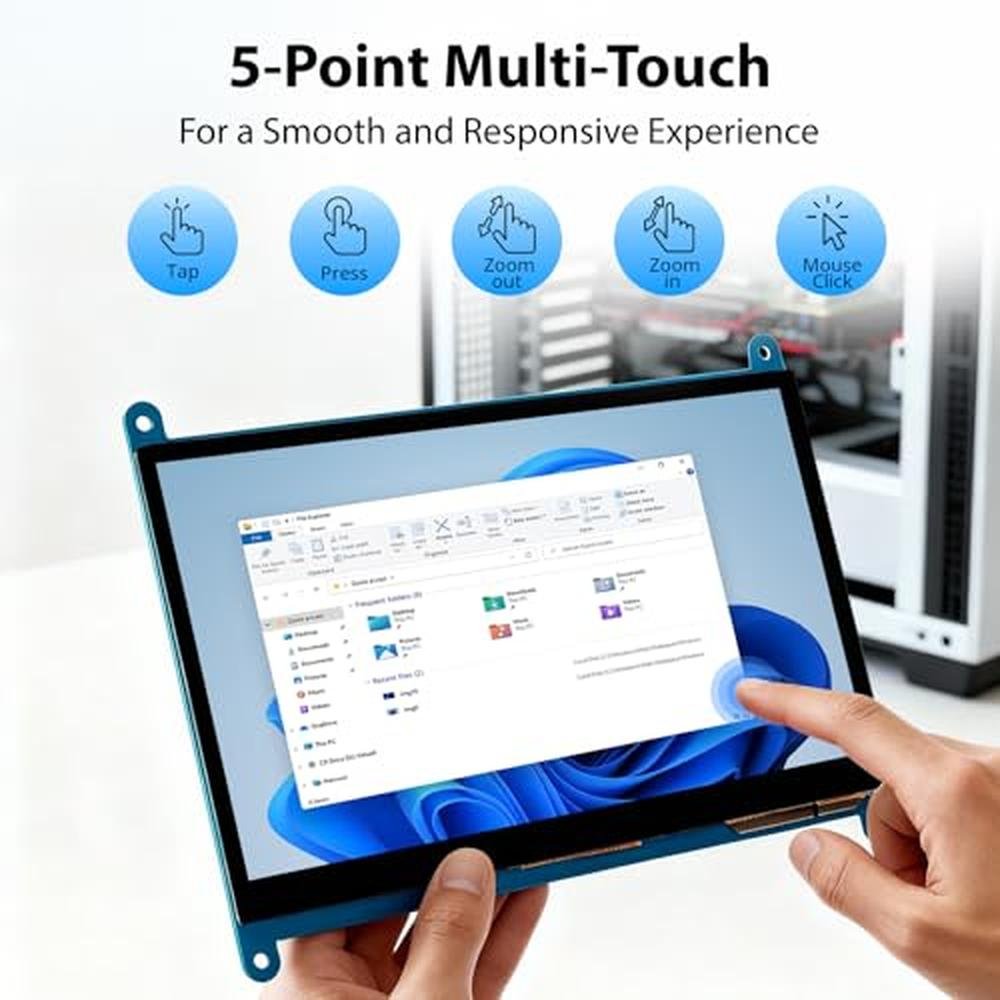

Touch: 5 point capacitive touch max
Dimensions: 164.9 x 124.27 (mm)
Active Area: 153.84 x 85.63 (mm)
Power Dissipation: 0.74A*5V
