Product description
You should not hold the USB C adapter for long periods of time and it should be placed on the desk or in a well-ventilated area when in use, keep away from water, fire and corrosive liquids.
This USB-C Docking Station supports Dual HDMI with M1 Chip, Dual display is supported on MacBook M1 through NOV8Tech USB-C Docking Station.
WARNINGS
Please make sure to connect your charger through the Power Delivery port to use the HDMI port properly.
Note: This USB-C Docking Station supports Dual HDMI with M1 Chip Dual display is supported on MacBook M1 through NOV8Tech USB-C Docking Station.
This hub can only read an SD Card or a Micro SD card at one time. It doesn't read them simultaneously.
For best use, devices connected to NOV8Tech USB C Hub should not exceed the total current of 900mA maximum. If they exceed, the output current may become unstable or disconnected.
These devices are often rated as following: Mouse: 100mA/Portable hard disk: Max. 500mA/USB 3.0 portable hard disk: Max 900mA/Keyboard: Max. 500mA.
This hub does not support Apple USB SuperDrive and cannot read hard drives more than 2TB.
The temperature of the hub will raise up to 47 Celsius (116 Fahrenheit) when working, but IC Chips will be constant temperature. But it does NOT damage your devices.
You could use third party Displaylink driver to solve that problem for Windows, macOS, Android, Chrome OS and Ubuntu machines. It is a free software.
11 IN 1 USB C HUB - DOCK STAND

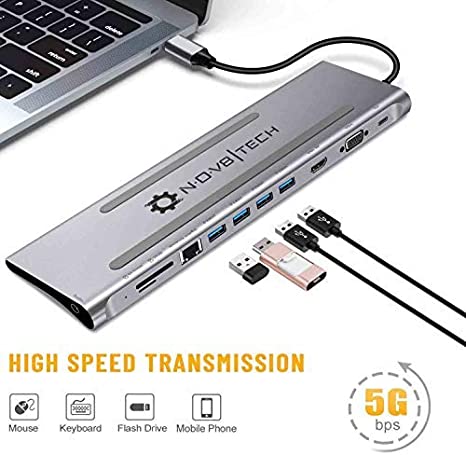

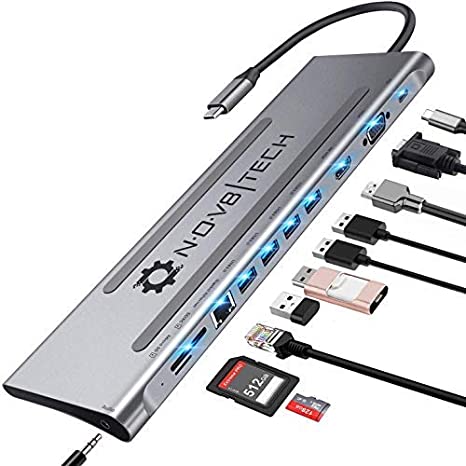

Start using your laptop’s full potential and enjoy maximum connectivity thanks to the NOV8Tech 11-in-1 Aluminum USB-C Hub for MacBooks now you will be able to connect 11 devices at once to your laptop.
Its convenient Plug-and-Play technology requires no driver or software installations to work.
This hub does not provide power to the connected laptop or tablet—the laptop will still require a separate charger to be connected through the hub or directly to the laptop/device.
STRONG POWER DELIVERY
With the NOV8Tech 11-in-1 Aluminum USB-C Hub now you can charge your devices at a high speed thanks to its USB Type-C port with a 100W power delivery.
Thanks to its HDMI 4K/30Hz HD port now you may transfer a 4K resolution at 30Hz and 1920x1080 (1080P) at 60Hz. It enables you to directly stream 4K HD or FULL HD 1080p video to HDTV, monitors, or projectors. Unlike the other USB hubs on the market, they support Dual Monitors simultaneously through VGA and HDMI (same screen).

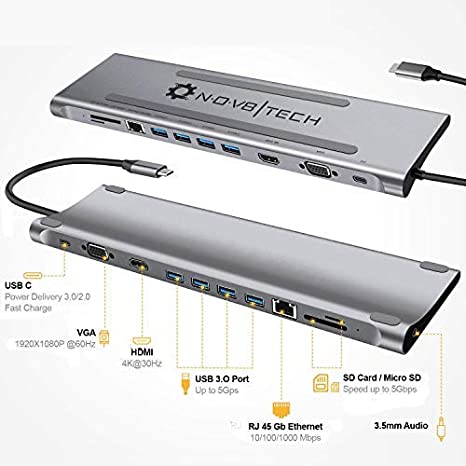

INTEGRATED PORTS
4 x USB 3.0 Ports---up to 5 Gb/s
1 x USB C Type Power Delivery-up to 100W
1 x SD Card Reader---up to 512Gbps
1 x MicroSD/TF Card Reader--up to 5Gbps
1 x HDMI Port---480p/720p/1080p/2K/4K
1 x VGA port
1 x 3.5mm Audio Jack
1 x Gigabit Ethernet port
WARNINGS
This hub can only read an SD Card or a Micro SD card at one time. It doesn't read them simultaneously.
For best use, devices connected to NOV8Tech USB C Hub should not exceed the total current of 900mA maximum. If they exceed, the output current may become unstable or disconnected. Below devices are often rated as following: Mouse: 100mA/Portable hard disk: Max. 500mA/USB 3.0 portable hard disk: Max 900mA/Keyboard: Max. 500mA.
This hub does not support Apple USB SuperDrive and cannot read hard drives more than 2TB.
The temperature of the hub will raise up to 47 Celsius (116 Fahrenheit) when working, but IC Chips will be at a constant temperature. But it does NOT damage your devices.
Please keep in mind that you should not hold the USB C adapter for long periods of time and that it should be placed on the desk or in a well-ventilated area when in use, keep away from water, fire, and corrosive liquids.
The laptop USB C AC Adapter is required on the USB C Power Delivery port on all USB C Hubs and Docks to maximize the ports and for the stability of the ports on the USB C Hubs and Docks. Otherwise, the ports will be unstable and short out periodically.
NOV8Tech 11-in-1 USB C Hub is Compatible with Wide Range of USB C Laptops, Tablets, and Mobile Phones (Partial List)
USB Type C PC:
Apple MacBook Pro M1 2021/2020//2019/2018/2017/2016, iMac, iMac Pro, MacBook Air M1 2021/2020/2019/2018, MacBook Pro 13" 15" 16"
Samsung Galaxy NoteBook, GalaxyBook
Microsoft Surface Pro X, Surface Go, Surface Book 2, Surface Pro 7, Surface Laptop 3, Microsoft Lumia 950/950 XL
DELL XPS 13-7390-R1505S, XPS13 7390 13.3", XPS 15 9500-R1845S
Huawei MateBook X Pro, MateBook X, Huawei MateBook E, MateBook
HP Pavilion X2, Spectre 13, HP EliteBook Folio G1, Envy 13, Elite 13.3", Spectre Folio Convertible 13, ZBookStudio G7 15.6"
Xiaomi Air 12.5/13.3", Xiaomi Pro 15.6"
ASUS U306, U321, U4100, ROG and Supports Nintendo Switch and More Devices
USB Type C Tablet:
iPad Pro 2021/2020/2019/2018
Samsung Tab S4 / S5e / S6
USB Type C Mobile Phone:
Samsung Galaxy S20 / S20+ / S20 Ultra / S10 / S10 + / S10 Pro / S10e / S9 / S9 + / S8 / S8 + / Note 10 +/ Note 10 / Note 9 / Note 8
Huawei Mate 30, 30 Pro, Mate 20, 20 Pro, 20 X, Mate 10, 10 Pro, P50, P40, P40 Pro, P30, P30 Pro, P20, P20 Pro, Note 10
11-in-1 USB C DOCK 13-in-1 USB C HUB 7-in-1 USB C HUB 11-in-1 USB C HUB
USB 2.0 Port x1 x2 x3
USB 3.0 Port x4 x3 x1 x2
3.5mm Audio Jack ? x1
HDMI Port (4K@30Hz) ? x2 ? ?
VGA Port (1080p@60Hz) ? ?
SD/MicroSD Card ? ? ? ?
Type-C Port x1 x1 x1
Gigabit Ethernet Port ? ?
USB C 100W Power Delivery x1 x1 x1
